| Basic Information |
| Usage |

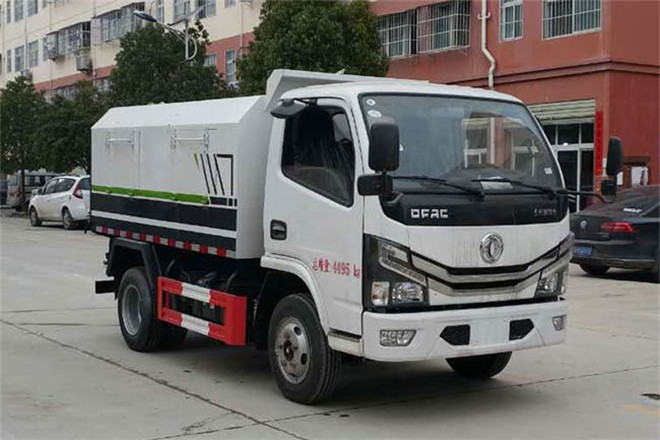

Refuse Collector |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
4855,5105mm |
| Width |
2000mm |
| Height |
2300mm |
| Curb Weight |
3310kg |
| Gross Weight |
4495kg |
| Seats |
2 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
EQ1045SJ3CDF |
| Front/Rear Overhang |
1055/1100mm |
| Number of Leaf Springs |
6/6+5 |
| Number of Axles |
2 |
| Wheelbase |
2700,2950,3308mm |
| Axle Load |
1600/2895kg |
| Front Wheel Track |
1525,1519mm |
| Rear Wheel Track |
1498,1516mm |
| Approaching/Departuring Angle |
27.7/25° |
| Tire |
| Number of Tires |
6 |
| Tire |
6.50R16,7.00R16 |
| Engine |
| Model |
D20TCIF1,YCY24140-60,CA4DB1-11E6,ZD30D16-6N,CY4BK461,CY4BK161,Q23-115E60,H20-120E60 |
| Power |
93,103,81,120,95,105,85,90kW |
| Brand |
Kunming Yunnei Power Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;China FAW Group Corporation;Dongfeng Light-duty Engine Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Dongfeng Chaoyang Diesel Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Anhui Quanchai Power Co., Ltd. |
| Displacement |
1999,2360,2207,2953,3707,3856,2300,2000ml |
