| Basic Information |
| Usage |

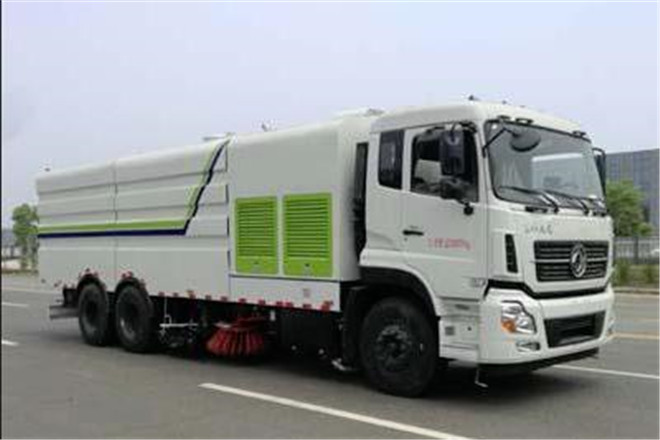

Vacuum Sweeper |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2005 national Ⅴ emission standards |
| Length |
10700,10500,10050,9620mm |
| Width |
2500mm |
| Height |
3390mm |
| Curb Weight |
17500kg |
| Gross Weight |
25000kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
DFL1250A13 |
| Front/Rear Overhang |
1480/2170,1480/2320,1480/2870,1480/2990,1500/2150,1500/2300,1500/2850,1500/2970mm |
| Number of Leaf Springs |
8/9,8/10,9/10 |
| Number of Axles |
3 |
| Wheelbase |
4350+1350,5350+1350,5700+1350,3800+1350mm |
| Axle Load |
7000/18000(two axles)kg |
| Front Wheel Track |
2040,1965mm |
| Rear Wheel Track |
1860/1860,1880/1880mm |
| Approaching/Departuring Angle |
18/14,18/13.5,18/13,18/12.5,18/12,18/11.5,18/11,18/10° |
| Tire |
| Number of Tires |
10 |
| Tire |
11.00-20 18PR,11.00R20 18PR,295/80R22.5 18PR,12.00R20 16PR |
| Engine |
| Model |
ISD245 50,ISD270 50,DDi75S350-50,DDi75S245-50,DDi75S292-50,YC6JA240-50 |
| Power |
180,198,257,180,215,177kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Trucks Co., Ltd.;Dongfeng Trucks Co., Ltd.;Dongfeng Trucks Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd. |
| Displacement |
6700,6700,7530,7530,7530,6870ml |
