| Basic Information |
| Usage |

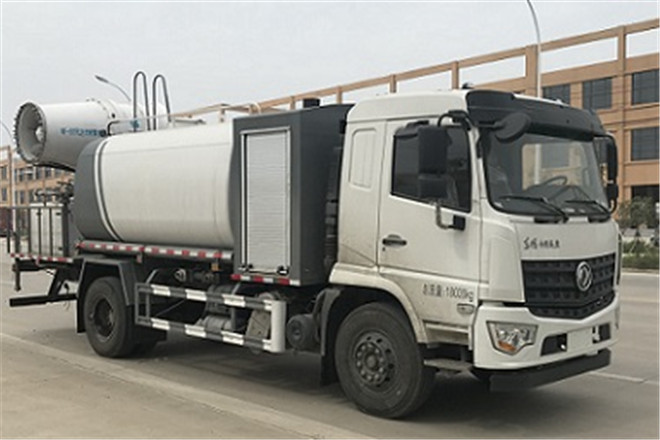

Multi-purpose Dust Suppression Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
9260,8860,8260,7860mm |
| Width |
2500mm |
| Height |
3800mm |
| Curb Weight |
9550kg |
| Gross Weight |
18000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFV1183GDP6DJ1 |
| Front/Rear Overhang |
1440/2720,1440/2720,1440/2920,1440/2620,1440/2470mm |
| Number of Leaf Springs |
8/10+7,8/10+8 |
| Number of Axles |
2 |
| Wheelbase |
3800,3950,4200,4500,4700,5100mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1810,1880,1940,1965mm |
| Rear Wheel Track |
1800,1820,1860mm |
| Approaching/Departuring Angle |
21/12,21/12,21/11,21/13,21/14° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,275/80R22.5 18PR,10.00R20 16PR |
| Engine |
| Model |
D4.5NS6B190,D6.7NS6B230,B6.2NS6B210,B6.2NS6B230,D4.0NS6B170,D4.5NS6B220,D4.0NS6B195,D4.0NS6B160 |
| Power |
140,169,154,169,125,162,143,118kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
4500,6700,6200,6200,4000,4500,4000,4000ml |
