| Basic Information | |||

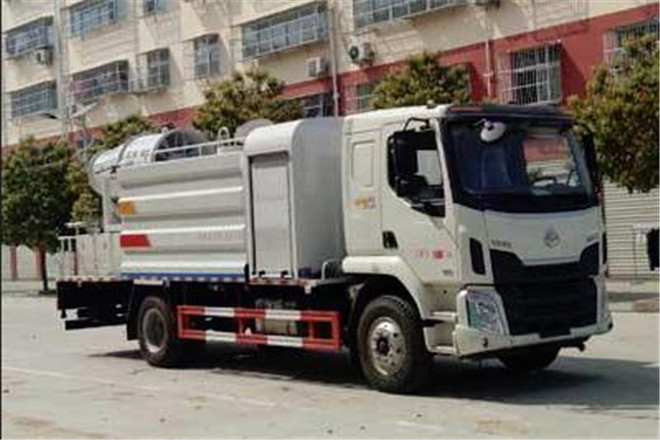

| Usage | Multi-purpose Dust Suppression Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9300,8900,8700,7705mm | ||
| Width | 2480mm | ||
| Height | 3750mm | ||
| Curb Weight | 9900kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | LZ5185XXYM3ABT | ||
| Front/Rear Overhang | 1445/2755,1445/2460mm | ||
| Number of Leaf Springs | 11/12+9,2/2+1,3/4+3,2/3+2,8/10+8,3/3+2 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5100,4700,4500,3800mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1940,2046mm | ||
| Rear Wheel Track | 1860mm | ||
| Approaching/Departuring Angle | 21/11,21/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 10.00R20,10.00-20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6JA180-50 | Guangxi Yuchai Machinery Co., Ltd. | 132kW | 6870ml |
| YC6JA200-50 | Guangxi Yuchai Machinery Co., Ltd. | 147kW | 6870ml |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 6700ml |
