| Basic Information |
| Usage |

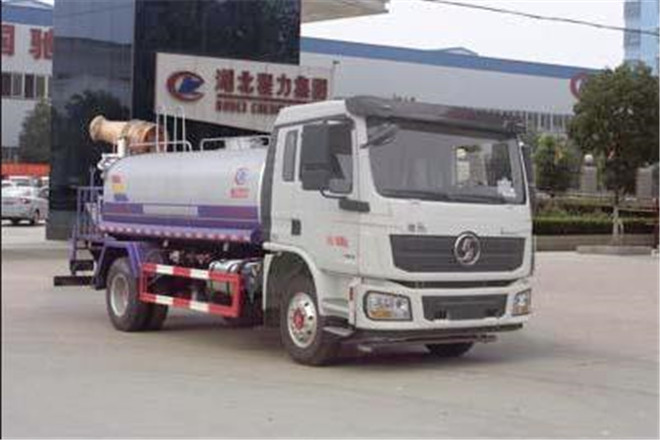

Multi-purpose Dust Suppression Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
8510,8310mm |
| Width |
2480mm |
| Height |
3200mm |
| Curb Weight |
7805kg |
| Gross Weight |
16000kg |
| Seats |
2,3 |
| Max Speed |
80km/h |
| Chassis |
| Chassis Model |
SX1160LB1 |
| Front/Rear Overhang |
1340/2470mm |
| Number of Leaf Springs |
10/9+6 |
| Number of Axles |
2 |
| Wheelbase |
3800,4200,4500,4700,5000mm |
| Axle Load |
5500/10500kg |
| Front Wheel Track |
1935,2011,1927mm |
| Rear Wheel Track |
1860mm |
| Approaching/Departuring Angle |
18/7° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00R20,10.00R20,275/80R22.5,10.00-20 |
| Engine |
| Model |
WP6.180E50,WP6.220E50,WP4.165E50,YC4EG185-50,WP6.245E50 |
| Power |
132,162,121,136,180kW |
| Brand |
Weichai (Weifang) Medium-duty Diesel Co., Ltd.;Weichai (Weifang) Medium-duty Diesel Co., Ltd.;Weichai (Weifang) Medium-duty Diesel Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Weichai (Weifang) Medium-duty Diesel Co., Ltd. |
| Displacement |
6750,6750,4500,4730,6750ml |
