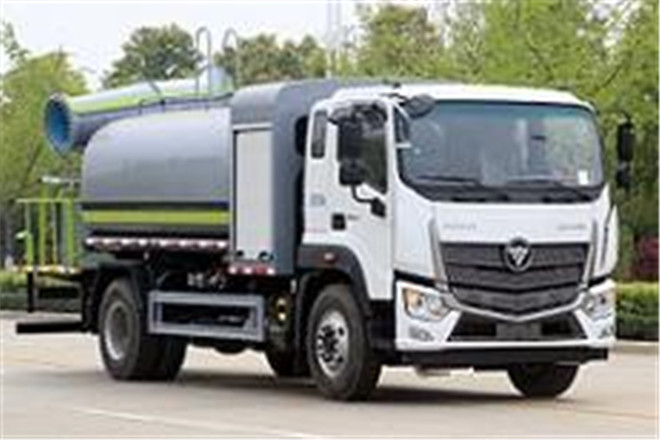

CLW5180TDYKL6 Multi-purpose Dust Suppression Truck
| Basic Information |
| Usage |
Multi-purpose Dust Suppression Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
8970,8650mm |
| Width |
2500mm |
| Height |
3700mm |
| Curb Weight |
9500kg |
| Gross Weight |
18000kg |
| Seats |
2 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
BJ1186VKPHK-1K |
| Front/Rear Overhang |
1270/2200,1270/2880mm |
| Number of Leaf Springs |
10/8+8,10/10+8,3/4+3 |
| Number of Axles |
2 |
| Wheelbase |
4500,5500,4500,5500,4700,5150,5750mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
2008,2008,1960,1931mm |
| Rear Wheel Track |
1860,1860,1840mm |
| Approaching/Departuring Angle |
18/23,18/21° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,11R22.5 18PR,275/80R22.5 18PR |
| Engine |
| Model |
D6.7NS6B230,D6.7NS6B230,F4.5NS6B220 |
| Power |
169,169,162kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Beijing Foton Cummins Engine Corporation |
| Displacement |
6700,6700,4500ml |
