| Basic Information |
| Usage |

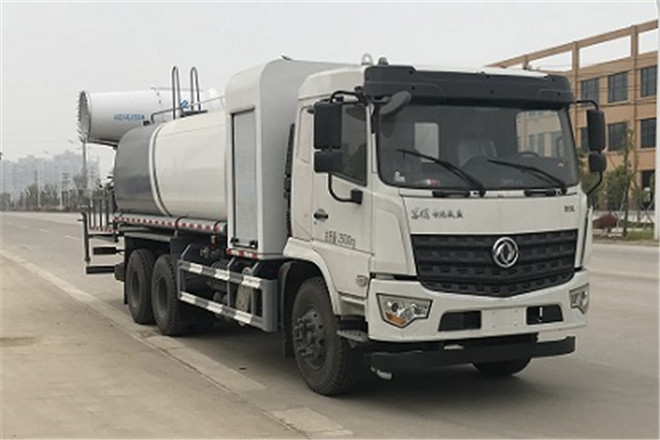

Multi-purpose Dust Suppression Truck |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
11880,10630mm |
| Width |
2500mm |
| Height |
3900mm |
| Curb Weight |
12300kg |
| Gross Weight |
25000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFV1253GP6DJ |
| Front/Rear Overhang |
1440/3490,1440/3090,1440/3690,1440/3390,1440/3190mm |
| Number of Leaf Springs |
9/10,8/13,9/13 |
| Number of Axles |
3 |
| Wheelbase |
4350+1350,4750+1350,5400+1350,5700+1350,5900+1350mm |
| Axle Load |
7000/18000(two axles)kg |
| Front Wheel Track |
1940,1965,1980,2020mm |
| Rear Wheel Track |
1860/1860mm |
| Approaching/Departuring Angle |
23/12,23/15,23/11,23/13,23/14° |
| Tire |
| Number of Tires |
10 |
| Tire |
11.00-20 16PR,11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR |
| Engine |
| Model |
D6.7NS6B320,D6.7NS6B260,D6.7NS6B230,B6.2NS6B260,B6.2NS6B230,YCS06270-60,YCS06245-60,YCS06245-60A |
| Power |
231,191,169,191,169,199,180,180kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd. |
| Displacement |
6700,6700,6700,6200,6200,6234,6234,6234ml |
