| Basic Information |
| Usage |

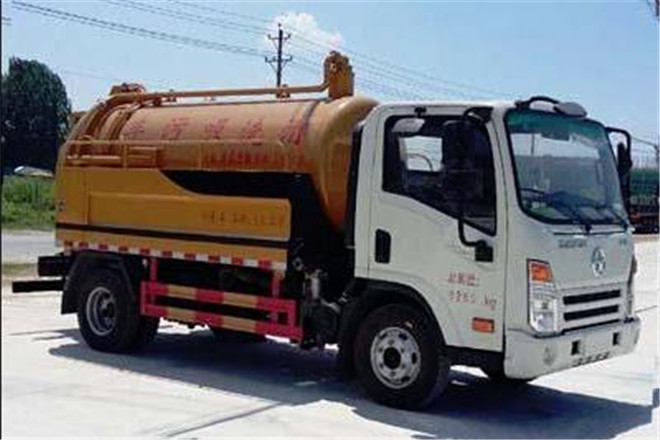

Suction-type Sewer Scavenger |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
6050,6250,6800mm |
| Width |
2090,2350mm |
| Height |
2690mm |
| Curb Weight |
5280kg |
| Gross Weight |
8280kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
CGC1080HDE33E |
| Front/Rear Overhang |
1150/1600,1150/1550,1150/2100mm |
| Number of Leaf Springs |
9/11+8,9/9+6,4/3+3,9/3+3,4/9+6,3/3+3,1/1+1,3/5+3 |
| Number of Axles |
2 |
| Wheelbase |
2800,3300,3550,3900mm |
| Axle Load |
3000/5280kg |
| Front Wheel Track |
1590,1665,1740,1770,1804,1840,1833mm |
| Rear Wheel Track |
1540,1640,1650,1700,1750,1811,1835,1790,1860,1888,1900,1615,1800mm |
| Approaching/Departuring Angle |
20/15,20/16° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.50-16,7.50R16,8.25-16,8.25R16 |
| Engine |
| Model |
YNF40E1,JE4D28Q5F,YN38CRE1,YN33CRE1,YC4S160-50,YC4FA130-50,D30TCIE4,4F1-150C50,4B2-115C50 |
| Power |
125,97,95,85,118,95,115,110,85kW |
| Brand |
Kunming Yunnei Power Co., Ltd.;Jiangxi ISUZU Engine Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Anhui Quanchai Power Co., Ltd. |
| Displacement |
3920,2776,3760,3298,3767,2982,2977,3857,2545ml |
