| Basic Information | |||

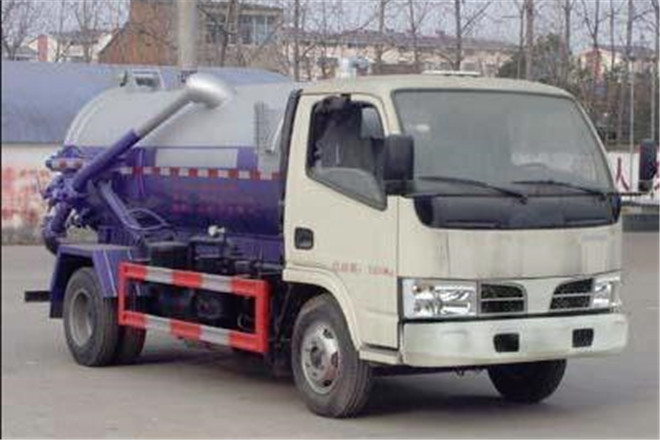

| Usage | Suction-type Sewer Scavenger | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5995,6105,6175,6205mm | ||
| Width | 2000,2100mm | ||
| Height | 2470,2600mm | ||
| Curb Weight | 4100kg | ||
| Gross Weight | 7350kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1072GLJ | ||
| Front/Rear Overhang | 1070/1625,1180/1625,1250/1625,1280/1625mm | ||
| Number of Leaf Springs | 8/9+5,8/10+7,9/10+8,6/6+5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,3800mm | ||
| Axle Load | 2640/4710kg | ||
| Front Wheel Track | 1506,1590,1750,1530mm | ||
| Rear Wheel Track | 1530,1586,1650mm | ||
| Approaching/Departuring Angle | 20/14° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 7.00-16LT 14PR,7.00R16LT 14PR,7.50-16LT 14PR,7.50R16LT 14PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CY4BK251 | Dongfeng Chaoyang Diesel Co., Ltd. | 96kW | 3856ml |
| CY4BK451 | Dongfeng Chaoyang Diesel Co., Ltd. | 86kW | 3707ml |
| YC4FA115-50 | Guangxi Yuchai Machinery Co., Ltd. | 85kW | 2982ml |
| 4DW94-95E5 | FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant | 72kW | 2720ml |
