| Basic Information |
| Usage |

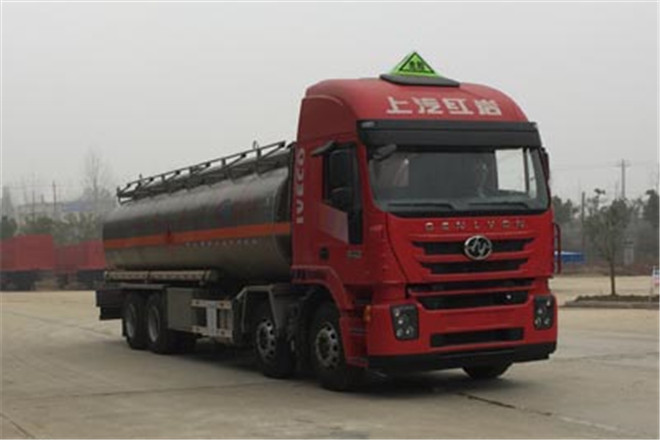

Aluminum Alloy Oil Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
11870mm |
| Width |
2525mm |
| Height |
3538,3738mm |
| Curb Weight |
11785kg |
| Gross Weight |
31000kg |
| Seats |
2,3 |
| Max Speed |
80km/h |
| Chassis |
| Chassis Model |
CQ1316HMVG39-486 |
| Front/Rear Overhang |
1435/2435,1435/2635mm |
| Number of Leaf Springs |
3/3/4,3/3/6,9/9/12,3/3/12,5/5/6 |
| Number of Axles |
4 |
| Wheelbase |
1800+3900+1400,1800+4200+1400,1800+4600+1400,1800+4800+1400mm |
| Axle Load |
6500/6500/18000(two axles)kg |
| Front Wheel Track |
2006/2006,2020/2020,2070/2070mm |
| Rear Wheel Track |
1850/1850mm |
| Approaching/Departuring Angle |
19/10° |
| Tire |
| Number of Tires |
12 |
| Tire |
11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR,295/80R22.5,315/80R22.5 18PR,12R22.5 |
| Engine |
| Model |
F2CCE611C*L,F2CCE611D*L |
| Power |
235,215kW |
| Brand |
Saic Fiat Powertrain Hongyan Co., Ltd.;Saic Fiat Powertrain Hongyan Co., Ltd. |
| Displacement |
8709,8709ml |
