| Basic Information | |||

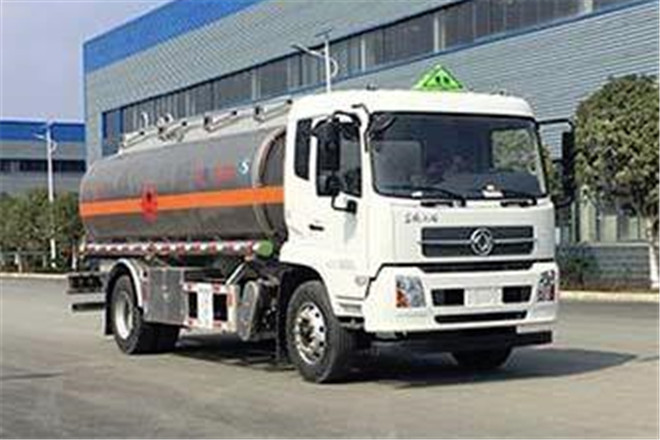

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8475mm | ||
| Width | 2500mm | ||
| Height | 3300mm | ||
| Curb Weight | 6905kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | DFH1180EX9 | ||
| Front/Rear Overhang | 1430/2345mm | ||
| Number of Leaf Springs | 3/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 4700,5000,5800mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 1910mm | ||
| Rear Wheel Track | 1840,1860,1800,1820mm | ||
| Approaching/Departuring Angle | 16/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 275/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
| DDi50E190-60 | Dongfeng Trucks Co., Ltd. | 147kW | 5000ml |
