| Basic Information |
| Usage |

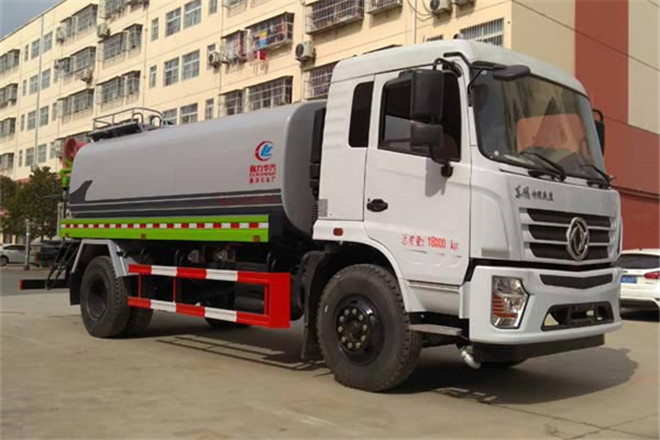

Tree Sprinkling Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB3847-2005,GB17691-2018 national Ⅵ emission standards |
| Length |
8390,7840mm |
| Width |
2550mm |
| Height |
3200mm |
| Curb Weight |
7520kg |
| Gross Weight |
18000kg |
| Seats |
2,3 |
| Max Speed |
89km/h |
| Chassis |
| Chassis Model |
DFV1183GP6DJ |
| Front/Rear Overhang |
1440/2450mm |
| Number of Leaf Springs |
8/10+8,9/12+10,3/4+3,3/10+8 |
| Number of Axles |
2 |
| Wheelbase |
3950,4200,4500,4700,5100mm |
| Axle Load |
6500/11500kg |
| Front Wheel Track |
1880,1940,1965mm |
| Rear Wheel Track |
1820,1860mm |
| Approaching/Departuring Angle |
18/13° |
| Tire |
| Number of Tires |
6 |
| Tire |
10.00R20 18PR,275/80R22.5 18PR |
| Engine |
| Model |
B6.2NS6B210,YCS04200-68,D4.0NS6B195,D4.0NS6B170 |
| Power |
154,147,143,125kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
6200,4156,4000,4000ml |
