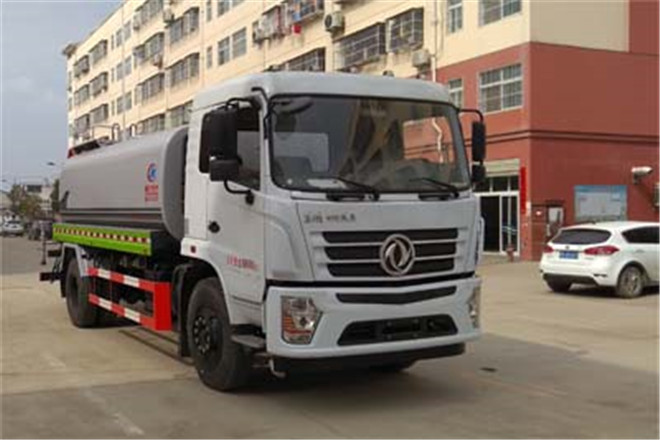

CLW5165GPSE5 Tree Sprinkling Tanker

CLW5165GPSE5 Tree Sprinkling Tanker
CLW5165GPSE5 Tree Sprinkling Tanker
Views:0
Basic Information
Usage Tree Sprinkling Tanker
Fuel Type Diesel
Emission Standard GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length 7860,7660,7710mm
Width 2500mm
Height 3200mm
Curb Weight 6145kg
Gross Weight 15800kg
Seats 2,3
Max Speed 90km/h
Chassis
Chassis Model EQ1160GD5DJ1
Front/Rear Overhang 1450/2460,1250/2460,1300/2460mm
Number of Leaf Springs 8/9+7,8/10+7,3/4+3
Number of Axles 2
Wheelbase 3650,3800,3950,4200,4400,4500,5100mm
Axle Load 5800/10000kg
Front Wheel Track 1810,1940,1750mm
Rear Wheel Track 1800,1860,1700,1830mm
Approaching/Departuring Angle 20/11,22/11°
Tire
Number of Tires 6
Tire 9.00-20 16PR,10.00-20 16PR,10.00R20 16PR,295/80R22.5 18PR
Engine
Model Brand Power Displacement
EQH160-52 Dongfeng Trucks Co., Ltd. 118kW 4752ml
ISD180 50 Dongfeng Cummins Engine Co., Ltd. 132kW 4500ml
YC4E140-56 Guangxi Yuchai Machinery Co., Ltd. 103kW 4260ml
YC4E160-56 Guangxi Yuchai Machinery Co., Ltd. 118kW 4260ml
YC4EG140-50 Guangxi Yuchai Machinery Co., Ltd. 105kW 4730ml
YC4FA130-50 Guangxi Yuchai Machinery Co., Ltd. 95kW 2982ml
YC4S150-50 Guangxi Yuchai Machinery Co., Ltd. 110kW 2600ml
ISB180 50 Dongfeng Cummins Engine Co., Ltd. 132kW 5900ml
WP3.7Q140E50 Weichai Power Yangzhou Diesel Co., Ltd. 103kW 3660ml
WP4.1Q160E50 Weichai Power Yangzhou Diesel Co., Ltd. 115kW 4088ml
