| Basic Information |
| Usage |

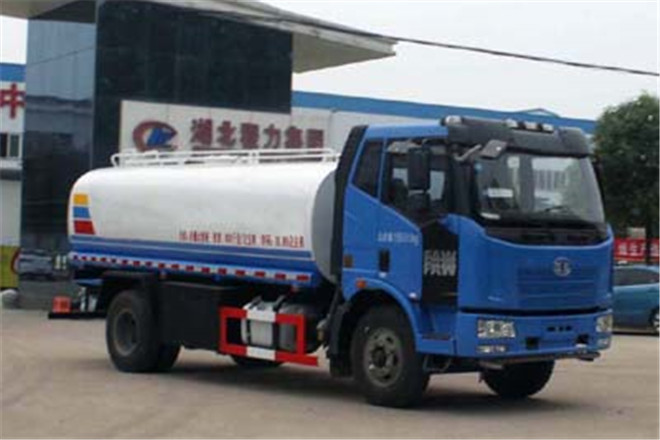

Tree Sprinkling Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
8600,8400mm |
| Width |
2480mm |
| Height |
3100mm |
| Curb Weight |
7100kg |
| Gross Weight |
15600kg |
| Seats |
3 |
| Max Speed |
102km/h |
| Chassis |
| Chassis Model |
CA1160P62K1L2E5Z |
| Front/Rear Overhang |
1400/2500mm |
| Number of Leaf Springs |
7/10+3,10/12+8,7/7+6,12/12+8,12/10+9 |
| Number of Axles |
2 |
| Wheelbase |
5000,4700,4500,5300,5800mm |
| Axle Load |
5600/10000kg |
| Front Wheel Track |
1800,1914,1827,1868,1840mm |
| Rear Wheel Track |
1800,1847,1878mm |
| Approaching/Departuring Angle |
21/10° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00-20,9.00R20,10R22.5,10.00-20,10.00R20 |
| Engine |
| Model |
BF6M2012-20E51,BF6M2012-18E5,BF4M2012-16E5,BF6M2012-22E51,CA4DK1-18E5,CA4DK1-22E51,CA4DK1-18E51,CA4DK1-16E51,CA6DH1-22E5,CA6DH1-22E51,CA4DH1-16E51 |
| Power |
150,139,113,165,139,165,139,121,165,165,121kW |
| Brand |
China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation |
| Displacement |
6060,6060,4040,6060,4764,4764,4764,4764,5700,5700,3800ml |
