| Basic Information | |||

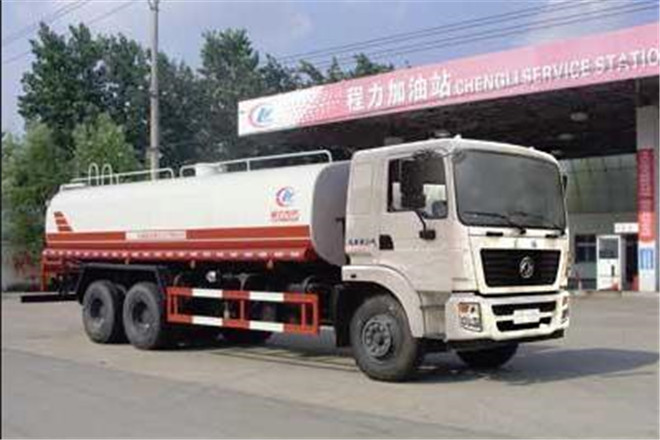

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10325,10260,10060mm | ||
| Width | 2500mm | ||
| Height | 3200mm | ||
| Curb Weight | 10665kg | ||
| Gross Weight | 25000kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | EQ1258GSZ5DJ | ||
| Front/Rear Overhang | 1515/3160,1450/3160,1250/3160mm | ||
| Number of Leaf Springs | 9/10,9/13 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4350+1300,4750+1300,5900+1300,4900+1300,5350+1300,4350+1350,4750+1350,5900+1350,4900+1350,5350+1350mm | ||
| Axle Load | 7000/18000(two axles)kg | ||
| Front Wheel Track | 1940,1960,2010mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 26/21° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 295/80R22.5 18PR,11.00-20 18PR,11.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISD210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 6700ml |
| YC6JA240-50 | Guangxi Yuchai Machinery Co., Ltd. | 177kW | 6870ml |
| ISB210 50 | Dongfeng Cummins Engine Co., Ltd. | 155kW | 5900ml |
| YC6A240-50 | Guangxi Yuchai Machinery Co., Ltd. | 177kW | 7520ml |
| YC6A270-50 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 7520ml |
| WP7.270E51 | Weichai Power Co., Ltd. | 199kW | 7470ml |
| ISD245 50 | Dongfeng Cummins Engine Co., Ltd. | 180kW | 6700ml |
