| Basic Information | |||

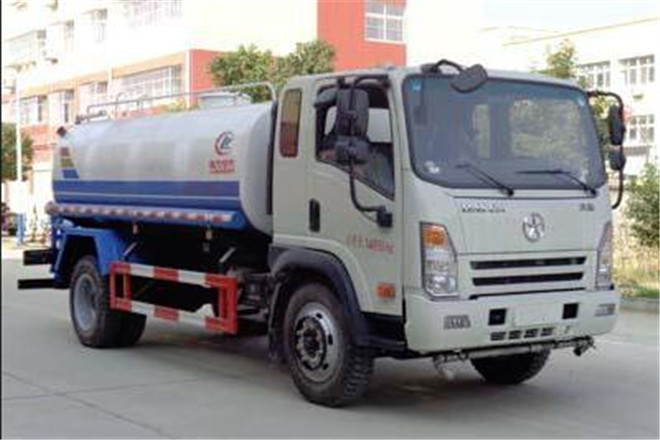

| Usage | Tree Sprinkling Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 7350mm | ||
| Width | 2320,2210mm | ||
| Height | 2750mm | ||
| Curb Weight | 5550kg | ||
| Gross Weight | 14055kg | ||
| Seats | 3 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | CGC1140HDE44E | ||
| Front/Rear Overhang | 1220/2030,1220/2230mm | ||
| Number of Leaf Springs | 9/11+8,9/9+6 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3300,3550,3900,4100,4400mm | ||
| Axle Load | 4860/9195kg | ||
| Front Wheel Track | 1740,1770,1804,1840,1833mm | ||
| Rear Wheel Track | 1640,1705,1811,1900,1835,1888,1860,1650,1800mm | ||
| Approaching/Departuring Angle | 20/13,20/15° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 8.25R20,9.00-20,9.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP4.1Q160E50 | Weichai Power Yangzhou Diesel Co., Ltd. | 115kW | 4088ml |
| YNF40E1 | Kunming Yunnei Power Co., Ltd. | 125kW | 3920ml |
| YC4S160-50 | Guangxi Yuchai Machinery Co., Ltd. | 118kW | 3767ml |
| ISF3.8s5154 | Beijing Foton Cummins Engine Corporation | 115kW | 3760ml |
| D30TCIE4 | Kuning Yunnei Power Co., Ltd. | 115kW | 2977ml |
| 4F1-150C50 | Anhui Quanchai Power Co., Ltd. | 110kW | 3857ml |
