| Basic Information |
| Usage |

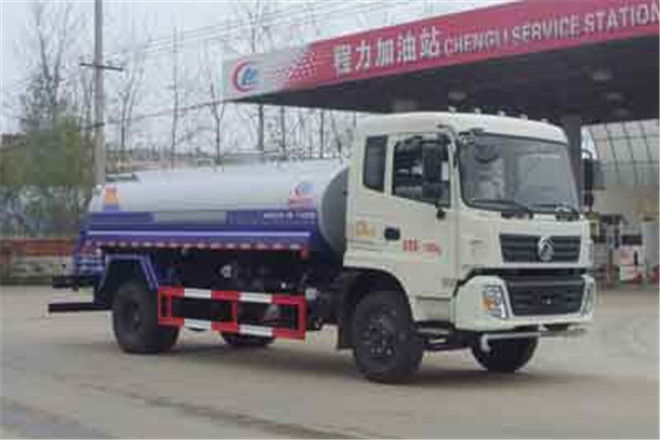

Tree Sprinkling Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
7640,8440mm |
| Width |
2500mm |
| Height |
3200mm |
| Curb Weight |
5430kg |
| Gross Weight |
15800kg |
| Seats |
2,3 |
| Max Speed |
90km/h |
| Chassis |
| Chassis Model |
EQ1160GD5DJ |
| Front/Rear Overhang |
1440/2250,1440/2500mm |
| Number of Leaf Springs |
9/12+10,8/10+7,8/10+8,7/9+6,11/11+10,9/10+8 |
| Number of Axles |
2 |
| Wheelbase |
3950,4500,5100,4700,4200,5600,5700,6300mm |
| Axle Load |
5800/10000kg |
| Front Wheel Track |
1900,1880,1810,1940mm |
| Rear Wheel Track |
1860,1800,1800,1860,1830mm |
| Approaching/Departuring Angle |
21/12,21/13° |
| Tire |
| Number of Tires |
6 |
| Tire |
9.00-20 16PR,10.00-20 16PR,10.00R20 16PR |
| Engine |
| Model |
ISD180 50,YC6JA180-50,ISD190 50,ISB170 50,ISB190 50,ISB210 50,YC4E160-56,YC4S150-50,EQH180-52,WP4.1Q160E50,ISB180 50,YC4S160-50,ISB220 50 |
| Power |
132,132,144,125,140,155,118,110,132,115,132,118,162kW |
| Brand |
Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Trucks Co., Ltd.;Weichai Power Yangzhou Diesel Co., Ltd.;Dongfeng Cummins Engine Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Dongfeng Cummins Engine Co., Ltd. |
| Displacement |
4500,6870,6700,5900,5900,5900,4260,3767,4752,4088,5900,3767,5900ml |
