| Basic Information |
| Usage |

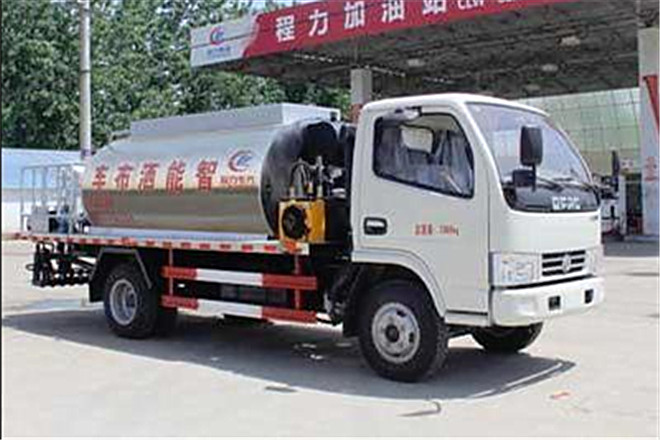

Road Maintenance Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
6300mm |
| Width |
2080mm |
| Height |
2400mm |
| Curb Weight |
5035kg |
| Gross Weight |
7360kg |
| Seats |
2 |
| Max Speed |
99km/h |
| Chassis |
| Chassis Model |
EQ1070SJ3BDF |
| Front/Rear Overhang |
1040/1952mm |
| Number of Leaf Springs |
6/6+5 |
| Number of Axles |
2 |
| Wheelbase |
3308,2800mm |
| Axle Load |
2640/4720kg |
| Front Wheel Track |
1503,1485,1519,1595mm |
| Rear Wheel Track |
1494,1516,1540mm |
| Approaching/Departuring Angle |
16/12° |
| Tire |
| Number of Tires |
6 |
| Tire |
7.00-16,7.00R16 |
| Engine |
| Model |
CY4BK551,YC4FA115-50,4B2-115C50,ZD30D13-5N,D28D11-5DA,4DW93-84E5,YN27CRE1,YN33CRE1,SD4D25R-70,4DX23-120E5,D25TCIE2,4F20TCIE5,4DW94-95E5,YCD4N4S-110,WP2.3Q110E50 |
| Power |
75,85,85,96,85,64,70,85,70,90,96,70,72,80,81kW |
| Brand |
Dongfeng Chaoyang Diesel Co., Ltd.;Guangxi Yuchai Machinery Co., Ltd.;Anhui Quanchai Power Co., Ltd.;Dongfeng Light-duty Engine Co., Ltd.;Dongfeng Light-duty Engine Co., Ltd.;FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant;Kunming Yunnei Power Co., Ltd.;Kunming Yunnei Power Co., Ltd.;Jiangsu Sida Power Machinery Group Co., Ltd.;FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant;Kunming Yunnei Power Co., Ltd.;Changchai Company Limited;FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant;Guangxi Yuchai Machinery Co., Ltd.;Weichai Power Yangzhou Diesel Co., Ltd. |
| Displacement |
3707,2982,2545,2953,2771,2540,2672,3298,2545,3857,2499,1995,2720,2799,2290ml |
