| Basic Information | |||

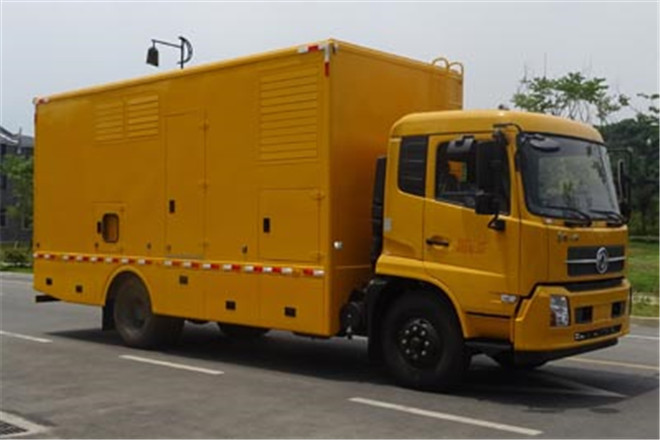

| Usage | Vehicle for Special Work | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 8990,8800,8440,7940,7540mm | ||
| Width | 2550,2500mm | ||
| Height | 3750,3600,3500mm | ||
| Curb Weight | 12280kg | ||
| Gross Weight | 12475,12000,11505kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | DFH1120E1 | ||
| Front/Rear Overhang | 1430/2560,1430/2670,1430/2310,1430/2510,1430/2010,1430/1910mm | ||
| Number of Leaf Springs | 7/9+6,8/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3800,3950,4200,4500,4700,5000mm | ||
| Axle Load | 4400/8075,4300/7700,4200/7305kg | ||
| Front Wheel Track | 1876,1896,1935,1950mm | ||
| Rear Wheel Track | 1820,1860mm | ||
| Approaching/Departuring Angle | 17/12° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,255/70R22.5 16PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DDi50E190-60 | Dongfeng Trucks Co., Ltd. | 147kW | 5000ml |
| D4.5NS6B190 | Dongfeng Cummins Engine Co., Ltd. | 140kW | 4500ml |
| B6.2NS6B210 | Dongfeng Cummins Engine Co., Ltd. | 154kW | 6200ml |
