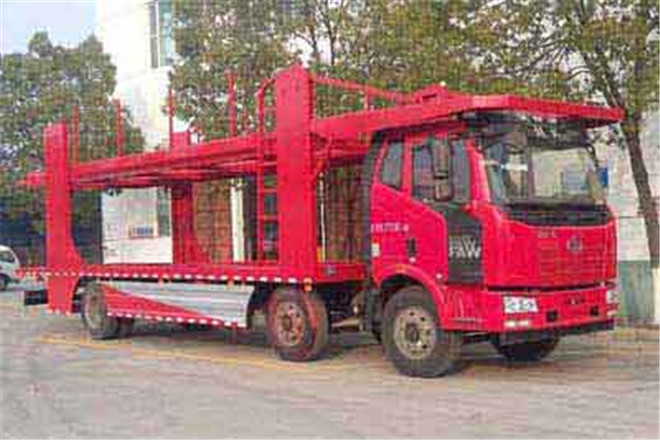

CLW5220TCLC5 Vehicle Carrier
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
11900,11400mm |
| Width |
2550mm |
| Height |
3950mm |
| Curb Weight |
12800kg |
| Gross Weight |
21500kg |
| Seats |
2,3 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
CA1220P62K1L7T3E5 |
| Front/Rear Overhang |
1400/3700mm |
| Number of Leaf Springs |
2/2/-,2/2/4+3 |
| Number of Axles |
3 |
| Wheelbase |
1950+4850,1950+4350,1950+5150mm |
| Axle Load |
5600/5600/10300kg |
| Front Wheel Track |
1950/1950,1990/1990,2010/2010mm |
| Rear Wheel Track |
1878mm |
| Approaching/Departuring Angle |
15/6° |
| Tire |
| Number of Tires |
8 |
| Tire |
295/60R22.5,275/70R22.5 |
| Engine |
| Model |
CA6DK1-32E5,CA6DK1-28E5,CA6DK1-32E51,CA6DK1-28E51 |
| Power |
239,209,239,209kW |
| Brand |
China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation |
| Displacement |
7146,7146,7146,7146ml |
