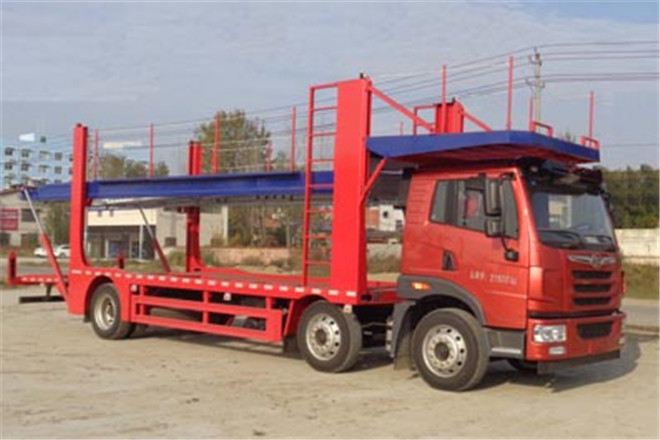

CLW5221TCLC5 Vehicle Carrier
| Basic Information |
| Usage |
Delivery Vehicle |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2005 national Ⅴ emission standards, GB3847-2005 |
| Length |
12000,11500mm |
| Width |
2550mm |
| Height |
3800mm |
| Curb Weight |
12050kg |
| Gross Weight |
21500kg |
| Seats |
2,3 |
| Max Speed |
110km/h |
| Chassis |
| Chassis Model |
CA1220P1K2L6T3BE5A80 |
| Front/Rear Overhang |
1375/3495,1375/3420mm |
| Number of Leaf Springs |
3/3/2+-,3/3/4+3 |
| Number of Axles |
3 |
| Wheelbase |
1900+4475,1900+4900,1900+5225mm |
| Axle Load |
5600/5600/10300kg |
| Front Wheel Track |
1964/1964mm |
| Rear Wheel Track |
1860mm |
| Approaching/Departuring Angle |
21/8,21/10° |
| Tire |
| Number of Tires |
8 |
| Tire |
275/70R22.5,315/60R22.5,315/70R22.5,295/60R22.5 |
| Engine |
| Model |
CA6DK1-32E5,A6DL1-32E5,CA6DL1-29E5,CA6DLD-24E5 |
| Power |
239,238,216,179kW |
| Brand |
China FAW Group Corporation;China FAW Group Corporation;China FAW Group Corporation;FAW Jiefang Automobile Co., Ltd. Wuxi Diesel Plant |
| Displacement |
7146,7700,7700,6600ml |
