| Basic Information | |||

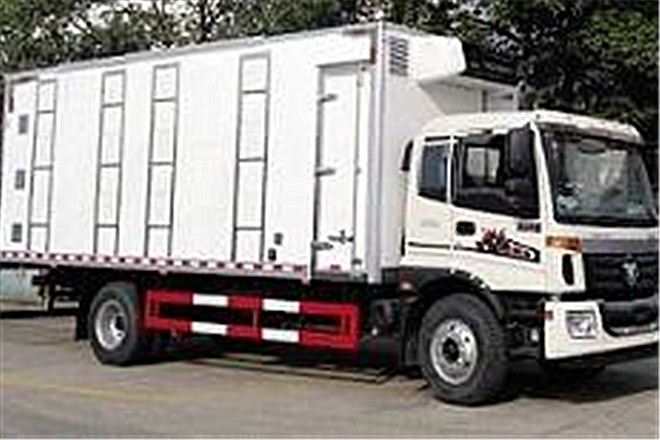

| Usage | Delivery Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national V emission standards, GB3847-2005 | ||
| Length | 9250,8660,9100mm | ||
| Width | 2470mm | ||
| Height | 3800,3760mm | ||
| Curb Weight | 7830kg | ||
| Gross Weight | 15795kg | ||
| Seats | 3 | ||
| Max Speed | 95km/h | ||
| Chassis | |||
| Chassis Model | BJ1169VKPEK-A2 | ||
| Front/Rear Overhang | 1365/2685,1365/2595,1365/2685,1365/2595,1270/2830,1270/2590mm | ||
| Number of Leaf Springs | 8/10+10,9/10+10,3/4+3,10/10+8 | ||
| Number of Axles | 2 | ||
| Wheelbase | 5200,4700,4800,5150mm | ||
| Axle Load | 5600/10195kg | ||
| Front Wheel Track | 1930,1914,1970mm | ||
| Rear Wheel Track | 1800,1840mm | ||
| Approaching/Departuring Angle | 21/9,21/11,21/9,21/11,21/7,21/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 9.00R20 16PR,10R22.5 16PR,10.00R20 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| ISF3.8s5168 | Beijing Foton Cummins Engine Co., Ltd. | 125kW | 3760ml |
| ISF4.5S5185 | Beijing Foton Cummins Engine Co., Ltd. | 136kW | 4460ml |
| ISF3.8E6168 | Beijing Foton Cummins Engine Co., Ltd. | 125kW | 3760ml |
| ISF4.5E6180 | Beijing Foton Cummins Engine Co., Ltd. | 134kW | 4460ml |
