| Basic Information | |||

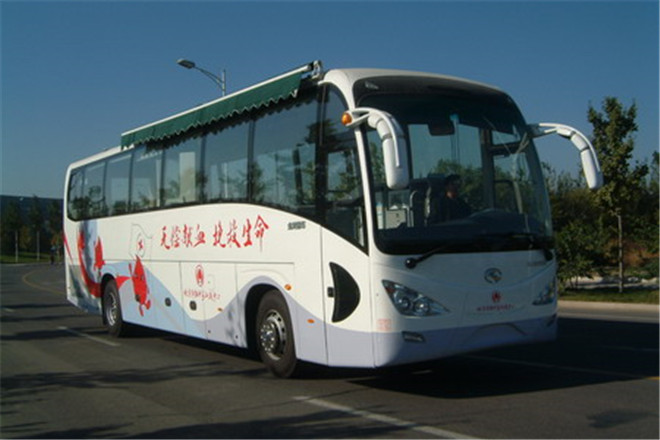

| Usage | Medical Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2005 national Ⅳ emission standards | ||
| Length | 11950mm | ||
| Width | 2540mm | ||
| Height | 3640,3690,3770mm | ||
| Curb Weight | 15700kg | ||
| Gross Weight | 18000kg | ||
| Seats | 4-16 | ||
| Max Speed | 125km/h | ||
| Chassis | |||
| Chassis Model | XMQ6120R5 | ||
| Front/Rear Overhang | 2550/3400mm | ||
| Number of Leaf Springs | 10/12,-/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 6000mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 2080,2020,2064mm | ||
| Rear Wheel Track | 1832,1860,1825mm | ||
| Approaching/Departuring Angle | 11/9° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5,12R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6L330-42 | Guangxi Yuchai Machinery Co., Ltd. | 243kW | 8424ml |
| WP10.336E40 | Weichai Power Co., Ltd. | 247kW | 9726ml |
| ISM11E4 345 | Xi'an Cummins Engine Co., Ltd. | 250kW | 10800ml |
| P11C-VE | Shanghai Hino Engine Co., Ltd. | 259kW | 10520ml |
| P11C-VD | Shanghai Hino Engine Co., Ltd. | 240kW | 10520ml |
| P11C-VA | Shanghai Hino Engine Co., Ltd. | 259kW | 10520ml |
| YC6G300-40 | Guangxi Yuchai Machinery Co., Ltd. | 221kW | 7800ml |
