| Basic Information | |||

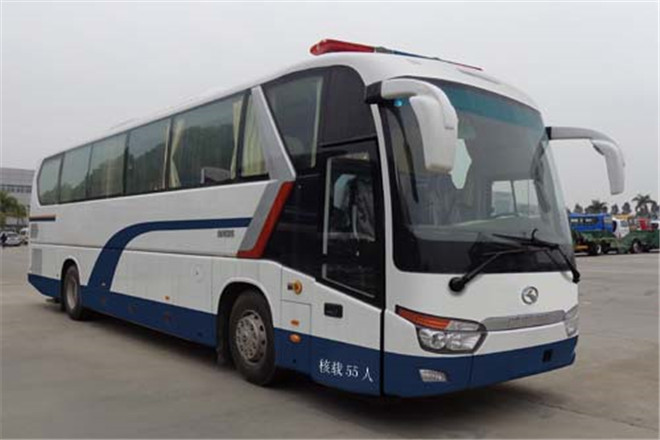

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 11950mm | ||
| Width | 2550mm | ||
| Height | 3640,3690mm | ||
| Curb Weight | 12900kg | ||
| Gross Weight | 18000kg | ||
| Seats | 24-53,24-55 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | XMQ6129BY4D | ||
| Front/Rear Overhang | 2550/3400mm | ||
| Number of Leaf Springs | 10/12,9/11,11/13,-/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 6000mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 2080,2020,2064mm | ||
| Rear Wheel Track | 1832,1860,1825mm | ||
| Approaching/Departuring Angle | 9/9.5° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5,12R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6L330-42 | Guangxi Yuchai Machinery Co., Ltd. | 243kW | 8424ml |
| ISM11E4 345 | Xi'an Cummins Engine Co., Ltd. | 250kW | 10800ml |
