| Basic Information | |||

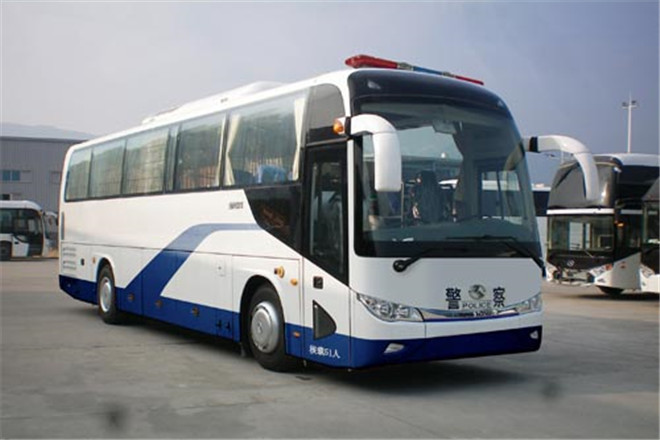

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅳ emission standards, GB3847-2005 | ||
| Length | 10950mm | ||
| Width | 2500mm | ||
| Height | 3600,3630mm | ||
| Curb Weight | 11600kg | ||
| Gross Weight | 16500kg | ||
| Seats | 24-51,24-49 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | XMQ6113AYD4D | ||
| Front/Rear Overhang | 2200/3200mm | ||
| Number of Leaf Springs | 10/12,-/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 5550mm | ||
| Axle Load | 5500/11000kg | ||
| Front Wheel Track | 2020,2054mm | ||
| Rear Wheel Track | 1860mm | ||
| Approaching/Departuring Angle | 9/8.5° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 11R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6J245-42 | Guangxi Yuchai Machinery Co., Ltd. | 180kW | 6494ml |
| YC6G270-40 | Guangxi Yuchai Machinery Co., Ltd. | 199kW | 7800ml |
| YC6A260-40 | Guangxi Yuchai Machinery Co., Ltd. | 191kW | 7255ml |
| YC6A280-40 | Guangxi Yuchai Machinery Co., Ltd. | 206kW | 7255ml |
| WP7.270E40 | Weichai Power Co., Ltd. | 199kW | 7140ml |
