| Basic Information | |||

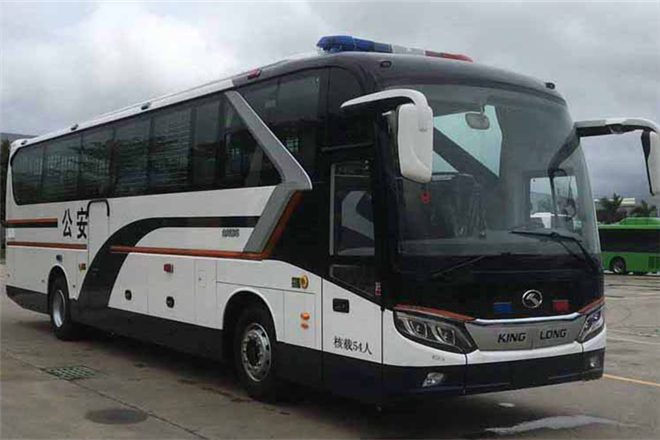

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11950mm | ||
| Width | 2550mm | ||
| Height | 3550,3620,3690mm | ||
| Curb Weight | 12900kg | ||
| Gross Weight | 18000kg | ||
| Seats | 24-54 | ||
| Max Speed | 100km/h | ||
| Chassis | |||
| Chassis Model | XMQ6129HYD5C1 | ||
| Front/Rear Overhang | 2550/3350mm | ||
| Number of Leaf Springs | 10/12,-/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 6050mm | ||
| Axle Load | 6500/11500kg | ||
| Front Wheel Track | 2080,2030,2064mm | ||
| Rear Wheel Track | 1870,1880,1900mm | ||
| Approaching/Departuring Angle | 10/8° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 295/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6L330-58 | Guangxi Yuchai Machinery Co., Ltd. | 243kW | 8424ml |
