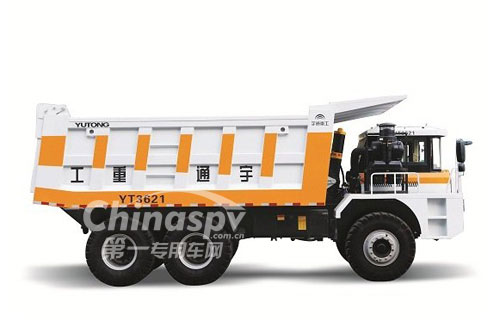

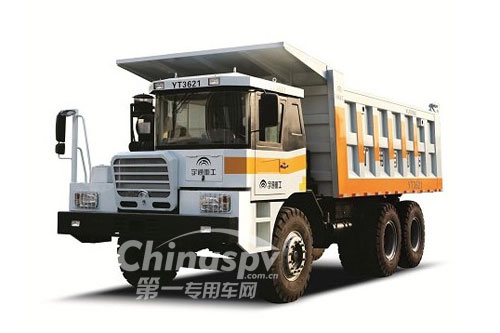

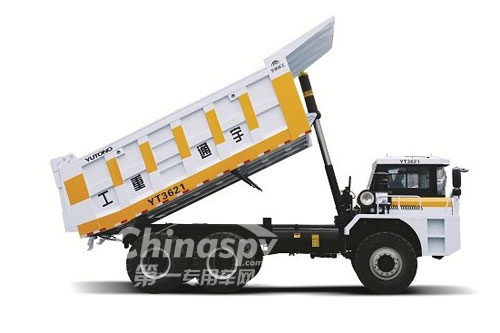

Yutong YT3621 Mining Dump Truck

Basic Information
Usage	Dump Truck
Length	8730mm
Width	3200mm
Height	3585mm
Curb Weight	22000kg
Gross Weight	62000kg
Max Speed	49km/h
Chassis
Wheelbase	3600/1500mm
Front Wheel Track	2422mm
Rear Wheel Track	2262mm
Approaching/Departuring Angle	30/45°
Tire
Tire	14.00-24 24PR
Engine
Model	Brand	Power	Displacement
WD12.375/YC6M375-20

　　Standard compartment capacity(m³)：26

　　Rock compartment capacity(m³)：25

　　Maximum gradeability(%)：35

　　Minimum turning diameter(mm)：＜22

　　Minimum ground clearance(mm)：380

　　Rated power(kW/hp)：276/375

　　Rated speed(rpm)：2200

　　Torque(N.m)：1500(1300～1600rpm)

　　Clutch：DSP430

　　Transmission：9JS180

　　Lifting time(s)：＜22

　　Fall time(s)：＜25

　　Allowable angle of inclination(°）：＜22
