Maximum gradeability(%): 35
Minimum turning radius(m): 22
Minimum ground clearance(mm): 270
Maximum torque(Nm/rpm): 1350/1200-1600
Frame: 300(8+8)
Chinaspv.com helps you to buy China special vehicles
中文版
中文版
| Basic Information | |||

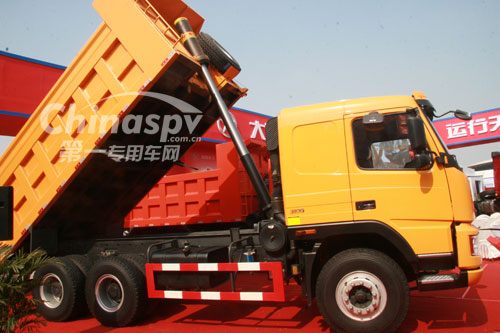

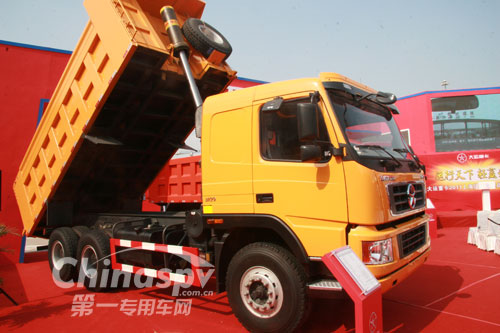

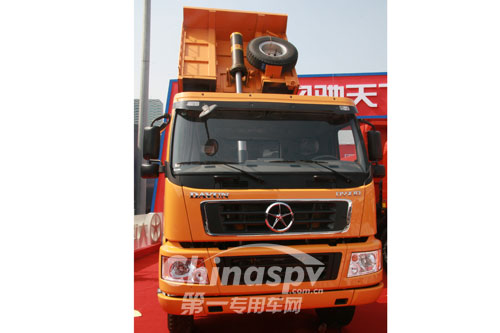

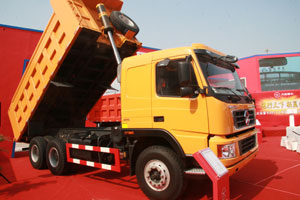

| Usage | Dump Truck | ||
| Emission Standard | National Ⅲ emission standards | ||
| Length | 8435mm | ||
| Width | 2496mm | ||
| Height | 3490mm | ||
| Curb Weight | 12185kg | ||
| Gross Weight | 25000kg | ||
| Seats | 2 | ||
| Max Speed | 75km/h | ||
| Chassis | |||
| Front/Rear Overhang | 1430/1855mm | ||
| Wheelbase | 3800+1350mm | ||
| Front Wheel Track | 2037mm | ||
| Rear Wheel Track | 1860mm | ||
| Approaching/Departuring Angle | 24/27° | ||
| Tire | |||
| Tire | 11.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| WP10.310E32 | 250kW | 9726ml | |
Maximum gradeability(%): 35
Minimum turning radius(m): 22
Minimum ground clearance(mm): 270
Maximum torque(Nm/rpm): 1350/1200-1600
Frame: 300(8+8)
