| Basic Information | |||

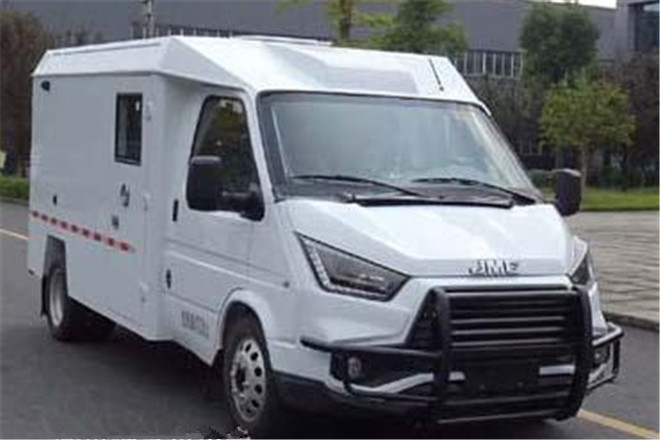

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5762,5632,5962,5832mm | ||
| Width | 2096mm | ||
| Height | 2280,2195,2145,2380mm | ||
| Curb Weight | 3100kg | ||
| Gross Weight | 4000kg | ||
| Seats | 3+3,3+2,2+3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | JX1040TH26 | ||
| Front/Rear Overhang | 1112/1080,982/1080,1112/1280,982/1280mm | ||
| Number of Leaf Springs | -/3,-/5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3570mm | ||
| Axle Load | 1800/2200kg | ||
| Front Wheel Track | 1700mm | ||
| Rear Wheel Track | 1645mm | ||
| Approaching/Departuring Angle | 17/22,21/22° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 185/75 R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| JX493ZLQ6 | Jiangling Motors Corporation Ltd. | 85kW | 2771ml |
