| Basic Information | |||

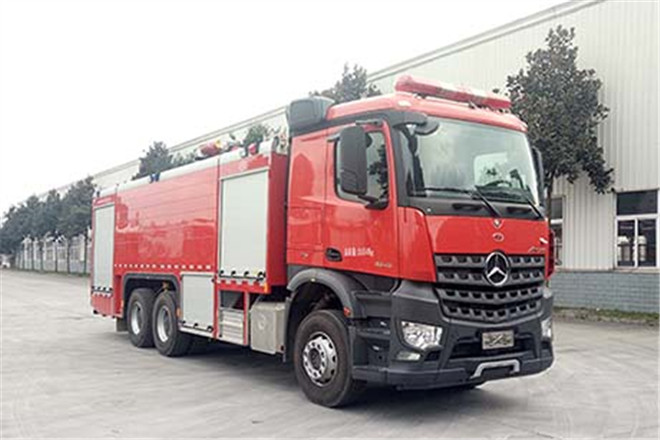

| Usage | Fire Extinguishing Truck | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10370mm | ||
| Width | 2500mm | ||
| Height | 3790mm | ||
| Curb Weight | 15000kg | ||
| Gross Weight | 31150kg | ||
| Seats | 2 | ||
| Max Speed | 90km/h | ||
| Chassis | |||
| Chassis Model | Arocs 3345 6X4 | ||
| Front/Rear Overhang | 1510/3010mm | ||
| Number of Leaf Springs | 3/4/4 | ||
| Number of Axles | 3 | ||
| Wheelbase | 4500+1350mm | ||
| Axle Load | 6650/12250/12250kg | ||
| Front Wheel Track | 2058mm | ||
| Rear Wheel Track | 1804/1804mm | ||
| Approaching/Departuring Angle | 14/8° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 315/80R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| OM471LA.5-55 | Daimler AG | 335kW | 12809ml |
