Basic Information | |||

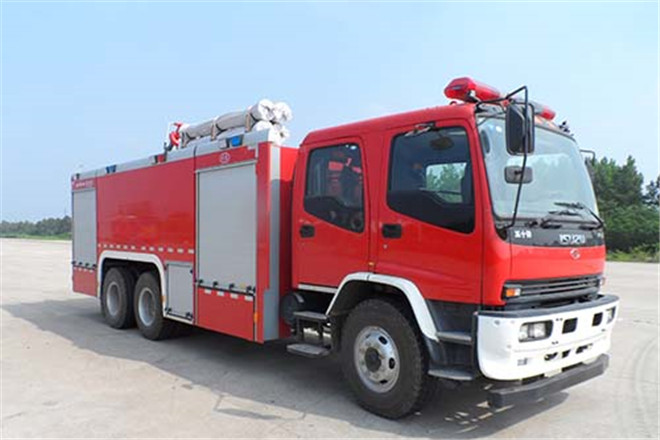

Usage | Fire Extinguishing Truck | ||
Fuel Type | Diesel | ||
Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
Length | 9435mm | ||
Width | 2500mm | ||
Height | 3620mm | ||
Curb Weight | 12350kg | ||
Gross Weight | 22700kg | ||
Seats | 2+4 | ||
Max Speed | 90km/h | ||
Chassis | |||
Chassis Model | QL1250WPFZY | ||
Front/Rear Overhang | 1335/2150mm | ||
Number of Leaf Springs | 9/10 | ||
Number of Axles | 3 | ||
Wheelbase | 4650+1300mm | ||
Axle Load | 5350/8675/8675kg | ||
Front Wheel Track | 1960mm | ||
Rear Wheel Track | 1855/1855mm | ||
Approaching/Departuring Angle | 15/14° | ||
Tire | |||
Number of Tires | 10 | ||
Tire | 11.00R20 18PR,295/80R22.5 18PR | ||
Engine | |||
Model | Brand | Power | Displacement |
6HK1-TCH | Qingling Isuzu (Chongqing) Engine Co., Ltd. | 221kW | 7790ml |
