| Basic Information | |||

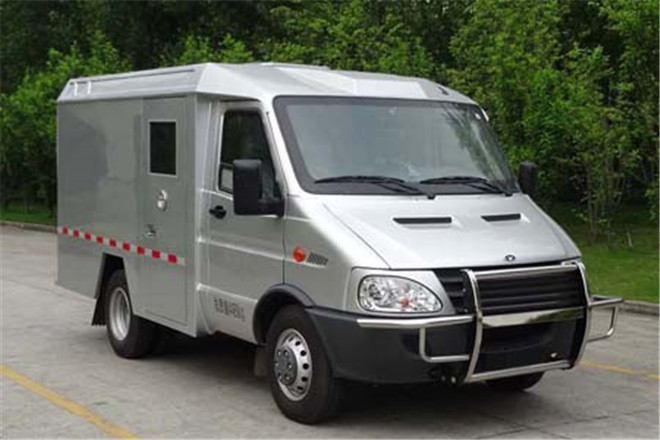

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5500,5380mm | ||
| Width | 2098mm | ||
| Height | 2410,2460mm | ||
| Curb Weight | 3300kg | ||
| Gross Weight | 4480kg | ||
| Seats | 3+3,3+2,2+3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | NJ1045DCCZ | ||
| Front/Rear Overhang | 1120/1580,1000/1580mm | ||
| Number of Leaf Springs | -/6,-/5+5,-/7,-/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2800mm | ||
| Axle Load | 1650/2830kg | ||
| Front Wheel Track | 1695mm | ||
| Rear Wheel Track | 1540mm | ||
| Approaching/Departuring Angle | 20/13,18/13° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 6.50R16LT | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| SOFIM8140.43S5 | NAVECO Ltd. | 95kW | 2798ml |
| F1CE34818 | NAVECO Ltd. | 107kW | 2998ml |
