| Basic Information | |||

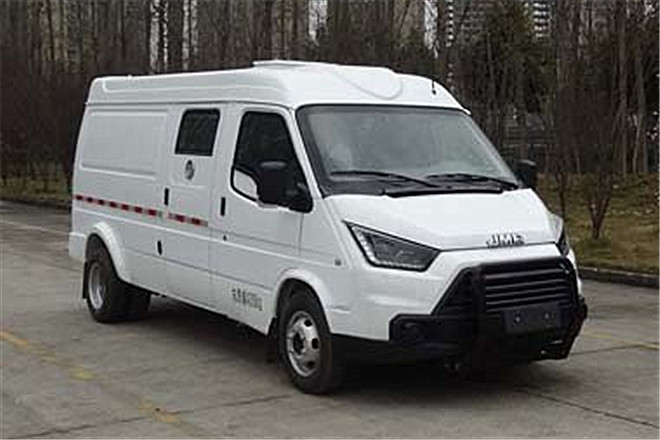

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 5796,5996,5646,5846mm | ||
| Width | 2096mm | ||
| Height | 2280,2195,2380,2145mm | ||
| Curb Weight | 2900kg | ||
| Gross Weight | 4000kg | ||
| Seats | 3+3,3+2,2+3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | JX1040TH25 | ||
| Front/Rear Overhang | 1176/1050,1176/1250,1026/1050,1026/1250mm | ||
| Number of Leaf Springs | -/5 | ||
| Number of Axles | 2 | ||
| Wheelbase | 3570mm | ||
| Axle Load | 1600/2400kg | ||
| Front Wheel Track | 1700mm | ||
| Rear Wheel Track | 1645mm | ||
| Approaching/Departuring Angle | 17/22,17/20,21/22,21/20° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 185R15LT,185/75 R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| JX493ZLQ5 | Jiangling Motors Corporation | 85kW | 2771ml |
| JX493ZLQ5A | Jiangling Motors Corporation | 85kW | 2771ml |
