| Basic Information | |||

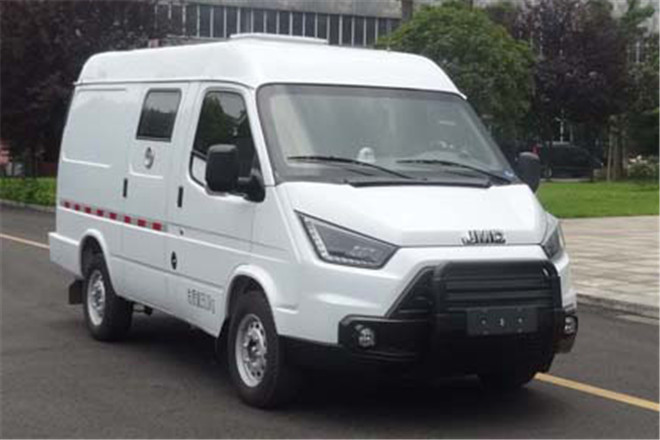

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 5327,5197mm | ||
| Width | 1998mm | ||
| Height | 2280,2240,2150,2110,2080,2040,1980mm | ||
| Curb Weight | 2560kg | ||
| Gross Weight | 3510kg | ||
| Seats | 3+3,3+2,2+3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | JX1040TC6 | ||
| Front/Rear Overhang | 1112/1380,982/1380mm | ||
| Number of Leaf Springs | -/3 | ||
| Number of Axles | 2 | ||
| Wheelbase | 2835mm | ||
| Axle Load | 1560/1950kg | ||
| Front Wheel Track | 1692mm | ||
| Rear Wheel Track | 1700mm | ||
| Approaching/Departuring Angle | 17/19,20/19° | ||
| Tire | |||
| Number of Tires | 4 | ||
| Tire | 225/65 R16C | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| JX493ZLQ6 | Jiangling Motors Corporation | 85kW | 2771ml |
