| Basic Information | |||

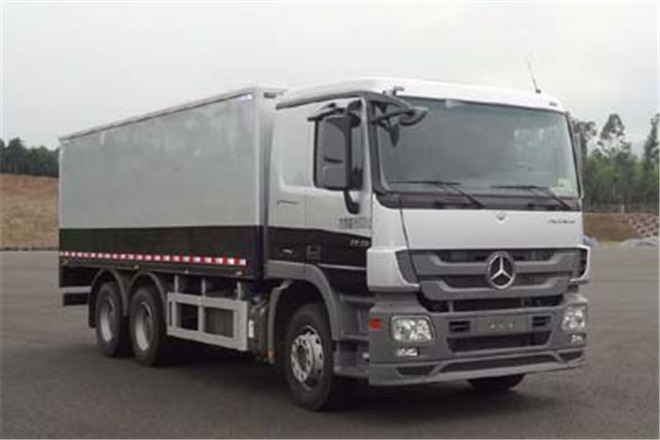

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 8340,8490mm | ||
| Width | 2540mm | ||
| Height | 3170,3500mm | ||
| Curb Weight | 9870kg | ||
| Gross Weight | 18000kg | ||
| Seats | 2,3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | Actros 1832E5, second-class, Daimler AG | ||
| Front/Rear Overhang | 1440/2400,1590/2400mm | ||
| Number of Leaf Springs | 2/- | ||
| Number of Axles | 2 | ||
| Wheelbase | 4500mm | ||
| Axle Load | 7000/11000kg | ||
| Front Wheel Track | 2034mm | ||
| Rear Wheel Track | 1834mm | ||
| Approaching/Departuring Angle | 16/11° | ||
| Tire | |||
| Number of Tires | 6 | ||
| Tire | 315/70 R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| OM501LA.V/1 | Dailmer AG | 240kW | 11946ml |
