| Basic Information | |||

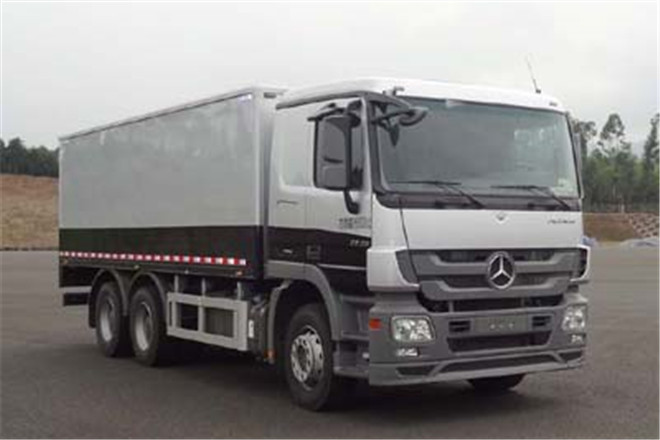

| Usage | Police Van | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9240,9390mm | ||
| Width | 2540mm | ||
| Height | 3180,3500mm | ||
| Curb Weight | 12850kg | ||
| Gross Weight | 26000kg | ||
| Seats | 2,3 | ||
| Max Speed | 120km/h | ||
| Chassis | |||
| Chassis Model | Actros 2636E5 | ||
| Front/Rear Overhang | 1440/2250,1590/2250mm | ||
| Number of Leaf Springs | 2/-/- | ||
| Number of Axles | 3 | ||
| Wheelbase | 4200+1350mm | ||
| Axle Load | 7000/19000(two axles)kg | ||
| Front Wheel Track | 2034mm | ||
| Rear Wheel Track | 1804/1804mm | ||
| Approaching/Departuring Angle | 16/11° | ||
| Tire | |||
| Number of Tires | 10 | ||
| Tire | 315/70 R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| OM501LA.V/2 | Daimler AG | 270kW | 11946ml |
