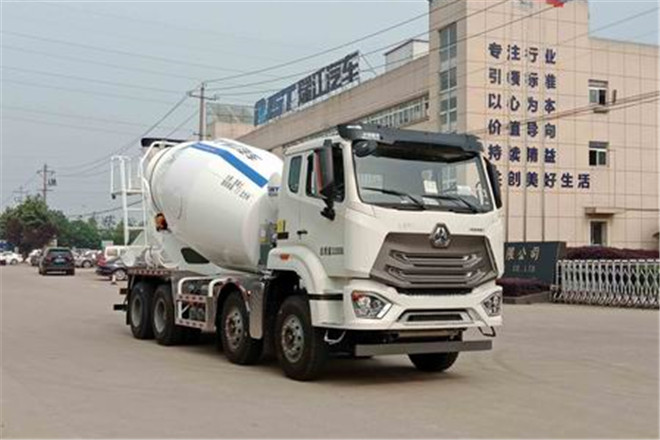

RJST WL5315GJBZZ31 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	10220mm
Width	2550mm
Height	3990mm
Curb Weight	14000kg
Gross Weight	31000kg
Seats	2
Max Speed	82km/h
Chassis
Chassis Model	ZZ1315V3666F1
Front/Rear Overhang	1550/2470,1550/2445mm
Number of Leaf Springs	4/4/-,4/4/-/-,4/4/5,4/4/12,8/8/10,9/9/-,9/9/-/-,9/9/12,11/11/-,11/11/-/-,11/11/12
Number of Axles	4
Wheelbase	1800+3050+1350,1800+3000+1400,1800+3025+1400,1800+3200+1350,1800+3175+1400,1800+3600+1350,1800+3575+1400mm
Axle Load	6500/7000/17500(two axles)kg
Front Wheel Track	1930/1930,1996/1996,2022/2022,2041/2041mm
Rear Wheel Track	1800/1800,1830/1830,1860/1860mm
Approaching/Departuring Angle	17/14°
Tire
Number of Tires	12
Tire	11.00R20 18PR,12.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,315/80R22.5 18PR
Engine
Model	Brand	Power	Displacement
MC07.31-60	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.34-60	China National Heavy Duty Truck Group Co., Ltd.	251kW	6870ml
MC09.35-60	China National Heavy Duty Truck Group Co., Ltd.	260kW	8765ml
MC09.35B-60	China National Heavy Duty Truck Group Co., Ltd.	260kW	8765ml
MC09.38-60	China National Heavy Duty Truck Group Co., Ltd.	279kW	8765ml
MC11.40-60	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
MC11.44-60	China National Heavy Duty Truck Group Co., Ltd.	327kW	10518ml
WP8.350E61	Weichai Power Co., Ltd.	257kW	7800ml
WP10H400E62	Weichai Power Co., Ltd.	294kW	9500ml
WP9H350E62	Weichai Power Co., Ltd.司	257kW	8800ml
MC07H.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	7360ml
MC07H.35-60	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
MC07.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	6870ml
