| Basic Information | |||

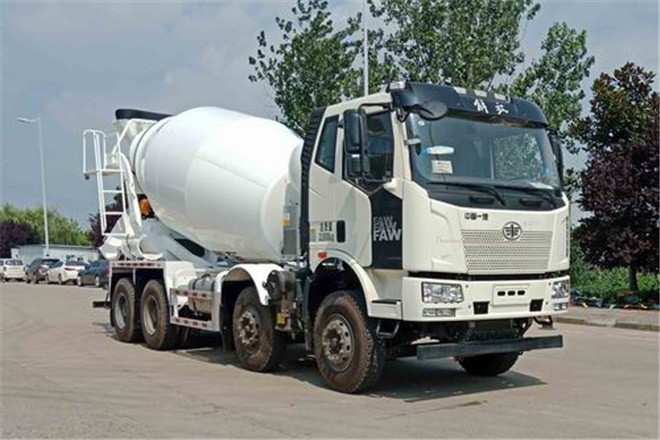

| Usage | Engineering Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 10150mm | ||
| Width | 2550mm | ||
| Height | 3990mm | ||
| Curb Weight | 14100kg | ||
| Gross Weight | 31000kg | ||
| Seats | 2,3 | ||
| Max Speed | 89km/h | ||
| Chassis | |||
| Chassis Model | CA5310GJBP62K2T4E5 | ||
| Front/Rear Overhang | 1400/2550mm | ||
| Number of Leaf Springs | 10/10/11,8/8/11,3/3/11,9/9/11,11/11/10,8/8/10,9/9/10 | ||
| Number of Axles | 4 | ||
| Wheelbase | 1950+2900+1350mm | ||
| Axle Load | 6500/6500/18000 (two axles)kg | ||
| Front Wheel Track | 1914/1914,1987/1987,1928/1928,1950/1950mm | ||
| Rear Wheel Track | 1860/1860,1878/1878,1900/1900mm | ||
| Approaching/Departuring Angle | 21/18° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 10.00R20,10.00-20,11.00R20,11.00-20,12R22.5 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| CA6DL1-32E5 | China FAW Group Co., Ltd. | 238kW | 7700ml |
| CA6DK1-32E5 | China FAW Group Co., Ltd. | 239kW | 7146ml |
