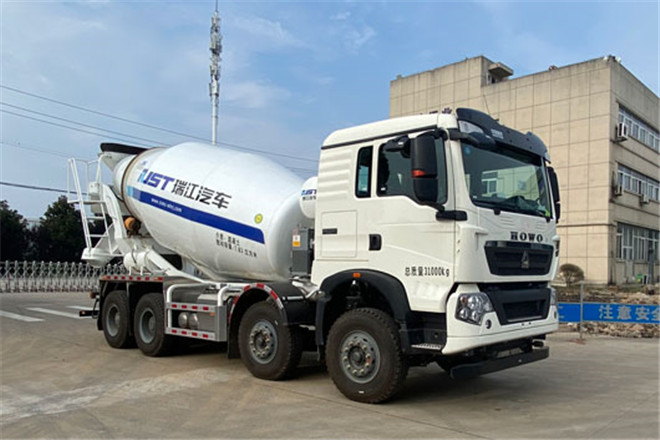

RJST WL5316GJBZZG6B2 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	10250,9980mm
Width	2550mm
Height	3990mm
Curb Weight	13780kg
Gross Weight	31000kg
Seats	2
Max Speed	82km/h
Chassis
Chassis Model	ZZ1317N306GF1
Front/Rear Overhang	1430/2620,1430/2595,1430/2350,1430/2325mm
Number of Leaf Springs	11/11/12,11/11/10,3/3/5,3/3/4,2/2/5,2/2/4,3/3/-,2/2/-,11/11/-,5/5/5,5/5/-
Number of Axles	4
Wheelbase	1800+3050+1350,1800+3025+1400,1950+2900+1350,1950+3050+1350,1950+3250+1350,1950+3450+1350,1800+3000+1400,1800+3225+1350,1800+3425+1350,1950+2850+1400,1800+3025+1350,1800+3200+1400,1800+3450+1350,1800+3425+1400mm
Axle Load	6500/7000/17500(two axles)kg
Front Wheel Track	2015/2015,2035/2035,2061/2061mm
Rear Wheel Track	1850/1850,1870/1870mm
Approaching/Departuring Angle	19/14°
Tire
Number of Tires	12
Tire	12R22.5 18PR,11.00R20 18PR,12.00R20 18PR,295/80R22.5 18PR,315/80R22.5 18PR,12.00R20 18PR
Engine
Model	Brand	Power	Displacement
MC07H.35-60	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
WP10H400E62	Weichai Power Co., Ltd.	294kW	9500ml
MC11.44-60	China National Heavy Duty Truck Group Co., Ltd.	327kW	10518ml
MC07.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	6870ml
MC09.35B-60	China National Heavy Duty Truck Group Co., Ltd.	260kW	8765ml
MC07.31-60	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC09.38-60	China National Heavy Duty Truck Group Co., Ltd.	279kW	8765ml
WP9H350E62	Weichai Power Co., Ltd.	257kW	8800ml
MC09.35-60	China National Heavy Duty Truck Group Co., Ltd.	260kW	8765ml
WP8.350E61	Weichai Power Co., Ltd.	257kW	7800ml
MC07.34-60	China National Heavy Duty Truck Group Co., Ltd.	251kW	6870ml
MC07H.33-60	China National Heavy Duty Truck Group Co., Ltd.	240kW	7360ml
MC11.40-61	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
MC11.43-61	China National Heavy Duty Truck Group Co., Ltd.	319kW	10518ml
MC11.46-61	China National Heavy Duty Truck Group Co., Ltd.	341kW	10518ml
WP8.350E61A	Weichai Power Co., Ltd.	257kW	7800ml
