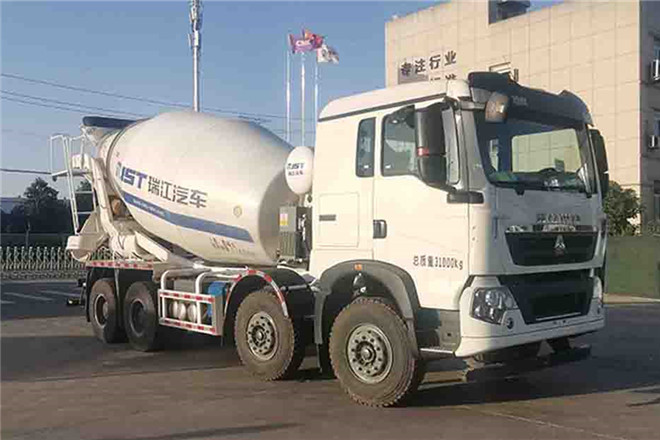

RJST WL5310GJBZZG5A2 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards
Length	10200mm
Width	2550mm
Height	3990mm
Curb Weight	14000kg
Gross Weight	31000kg
Seats	2
Max Speed	82km/h
Chassis
Chassis Model	ZZ1317N306GE1
Front/Rear Overhang	1430/2570,1430/2545mm
Number of Leaf Springs	11/11/12,11/11/10,5/5/5,3/3/4,3/3/5,2/2/5,2/2/4,11/11/-,5/5/-,3/3/-
Number of Axles	4
Wheelbase	1800+3025+1350,1800+3000+1400,1800+3225+1350,1800+3200+1400,1800+3025+1400,1800+3050+1350,1950+2875+1400,1950+2900+1350,1950+3050+1350,1950+3250+1350,1950+3450+1350,1800+3450+1350,1800+3425+1400mm
Axle Load	6500/7000/17500(two axles)kg
Front Wheel Track	2015/2015,2035/2035,2022/2022,2041/2041,2061/2061mm
Rear Wheel Track	1850/1850,1870/1870mm
Approaching/Departuring Angle	19/18°
Tire
Number of Tires	12
Tire	12R22.5 18PR,11.00R20 18PR,12.00R20 18PR
Engine
Model	Brand	Power	Displacement
MC07.31-50	China National Heavy Duty Truck Group Co., Ltd.	228kW	6870ml
MC07.34-50	China National Heavy Duty Truck Group Co., Ltd.	248kW	6870ml
MC07.35-50	China National Heavy Duty Truck Group Co., Ltd.	254kW	6870ml
WP8.340E51	Weichai Power Co., Ltd.	250kW	7800ml
MC09.34-50	China National Heavy Duty Truck Group Co., Ltd.	250kW	8765ml
MC09.36-50	China National Heavy Duty Truck Group Co., Ltd.	265kW	8765ml
MC09.38-50	China National Heavy Duty Truck Group Co., Ltd.	276kW	8765ml
MC09.40-50	China National Heavy Duty Truck Group Co., Ltd.	294kW	8765ml
MC07H.29-50	China National Heavy Duty Truck Group Co., Ltd.	213kW	7360ml
MC07H.32-50	China National Heavy Duty Truck Group Co., Ltd.	235kW	7360ml
MC07H.35-50	China National Heavy Duty Truck Group Co., Ltd.	257kW	7360ml
WP10H400E50	Weichai Power Co., Ltd.	294kW	9500ml
MC11.44-50	China National Heavy Duty Truck Group Co., Ltd.	327kW	10518ml
MC11.40-50	China National Heavy Duty Truck Group Co., Ltd.	297kW	10518ml
WP9H350E50	Weichai Power Co., Ltd.	257kW	8800ml
WP8.320E51A	Weichai Power Co., Ltd.	235kW	7800ml
