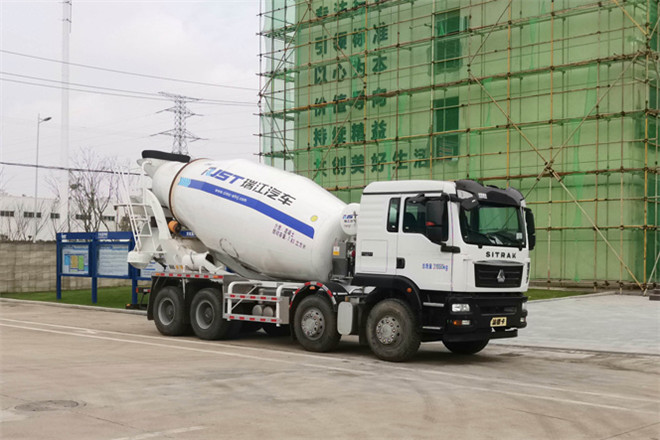

RJST WL5313GJBZZG5B2 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards
Length	10250,9980mm
Width	2550mm
Height	3990mm
Curb Weight	13780kg
Gross Weight	31000kg
Seats	2
Max Speed	82km/h
Chassis
Chassis Model	ZZ1316N306GE1
Front/Rear Overhang	1430/2595,1430/2620,1430/2325,1430/2350mm
Number of Leaf Springs	11/11/10,3/3/4,3/3/5,3/3/10,4/4/5,7/7/10,9/9/10,5/5/5
Number of Axles	4
Wheelbase	1800+3025+1400,1800+3050+1350mm
Axle Load	6500/7000/17500(two axles)kg
Front Wheel Track	2035/2035mm
Rear Wheel Track	1850/1850mm
Approaching/Departuring Angle	16/14°
Tire
Number of Tires	12
Tire	11.00R20 18PR,12R22.5 18PR,295/80R22.5 18PR,11R22.5 18PR
Engine
Model	Brand	Power	Displacement
MC07.31-50	China National Heavy Duty Trucks Group Co., Ltd.	228kW	6870ml
MC07.34-50	China National Heavy Duty Trucks Group Co., Ltd.	248kW	6870ml
MC07.35-50	China National Heavy Duty Trucks Group Co., Ltd.	254kW	6870ml
MC07H.35-50	China National Heavy Duty Trucks Group Co., Ltd.	257kW	7360ml
WP8.340E51	Weichai Power Co., Ltd.	250kW	7800ml
