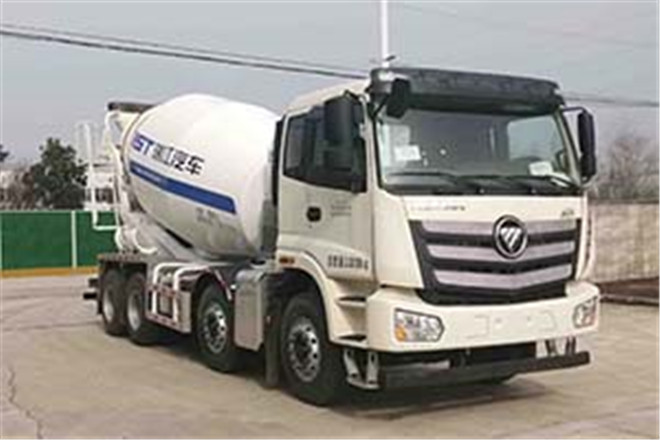

RJST WL5310GJBBJ27G6 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length	10350mm
Width	2550mm
Height	3990mm
Curb Weight	14000kg
Gross Weight	31000kg
Seats	2
Max Speed	80km/h
Chassis
Chassis Model	BJ5313GJBY6GRL-02
Front/Rear Overhang	1532/2618mm
Number of Leaf Springs	left 14 right 13/left 14 right 13/12,left 14 right 13/left 14 right 13/14,13/14/12,13/14/14,11/11/14,10/10/10,10/10/12,3/3/5,3/3/4
Number of Axles	4
Wheelbase	2100+2750+1350mm
Axle Load	6500/6500/18000(two axles)kg
Front Wheel Track	2020/2020,2050/2050,2080/2080mm
Rear Wheel Track	1830/1830,1865/1865,1880/1880mm
Approaching/Departuring Angle	13/14°
Tire
Number of Tires	12
Tire	11.00R20 16PR,11.00R20 18PR,11.00-20 16PR,11.00-20 18PR,12.00R20 14PR,12.00R20 16PR,12.00R20 18PR,12.00-20 14PR,12.00-20 16PR,12.00-20 18PR,12R22.5 16PR,12R22.5 18PR
Engine
Model	Brand	Power	Displacement
X12NS6B360	Beijing Foton Cummins Engine Co., Ltd.	265kW	11800ml
X11NS6B360	Beijing Foton Cummins Engine Co., Ltd.	265kW	10500ml
WP8.350E61A	Weichai Power Co., Ltd.	257kW	7800ml
