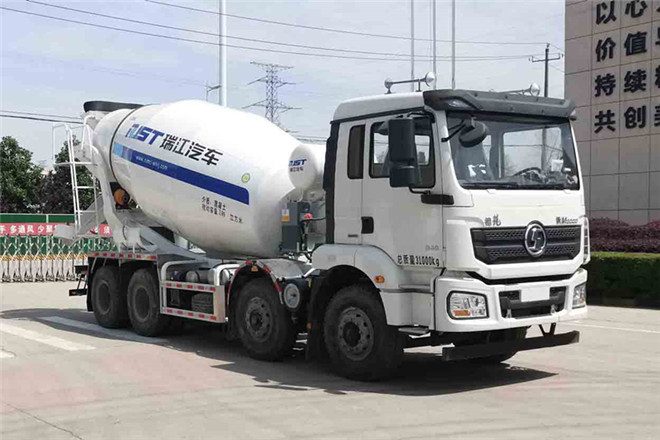

RJST WL5311GJBSX30F Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	10200mm
Width	2550mm
Height	3990mm
Curb Weight	13370kg
Gross Weight	31000kg
Seats	2,3
Max Speed	80km/h
Chassis
Chassis Model	SX5310GJBMB6
Front/Rear Overhang	1525/2475mm
Number of Leaf Springs	3/3/5,3/3/-,10/10/12,10/10/10,left 14 right 13/left 14 right 13/12,4/4/5,2/2/4,3/3/4,14/14/12
Number of Axles	4
Wheelbase	1800+3000+1400mm
Axle Load	6500/6500/18000(two axles)kg
Front Wheel Track	2036/2036,2011/2011,2070/2070mm
Rear Wheel Track	1860/1860mm
Approaching/Departuring Angle	10/°
Tire
Number of Tires	12
Tire	295/80R22.5,11.00R20,12.00R20 18PR,295/80R22.5 16PR,295/80R22.5 18PR,11.00R20 16PR,11.00R20 18PR,12R22.5 16PR,12R22.5 18PR,12.00R20 16PR
Engine
Model	Brand	Power	Displacement
WP7.300E51	Weichai Power Co., Ltd.	220kW	7470ml
WP7.340E53	Weichai Power Co., Ltd.	250kW	7470ml
WP9H336E50	Weichai Power Co., Ltd.	247kW	8800ml
WP10.336E53	Weichai Power Co., Ltd.	247kW	9726ml
WP12.375E50	Weichai Power Co., Ltd.	276kW	11596ml
ISM11E5 345	Xi'an Cummins Engine Co., Ltd.	250kW	10800ml
WP10.350E53	Weichai Power Co., Ltd.	257kW	9726ml
WP10.336E55	Weichai Power Co., Ltd.	247kW	9726ml
WP8.340E51	Weichai Power Co., Ltd.	250kW	7800ml
WP10H400E50	Weichai Power Co., Ltd.	294kW	9500ml
