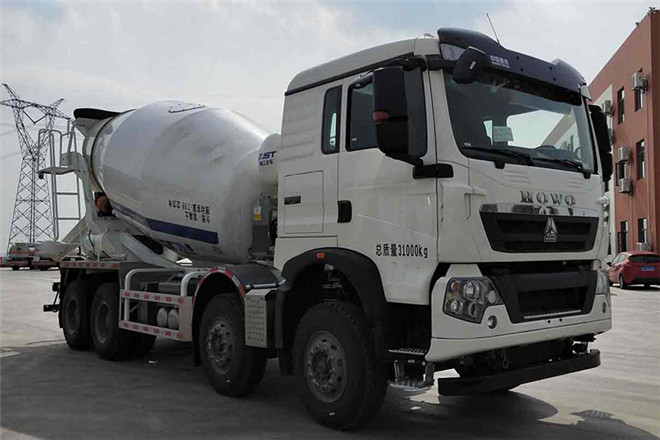

RJST WL5310GJBZZ31NA0 Concrete Mixing Transport Vehicle

Basic Information
Usage	Engineering Vehicle
Fuel Type	Natural gas
Emission Standard	GB17691-2018 national Ⅵ emission standards
Length	10200mm
Width	2550mm
Height	3990mm
Curb Weight	13430kg
Gross Weight	31000kg
Seats	2
Max Speed	82km/h
Chassis
Chassis Model	ZZ1317N306GF1L
Front/Rear Overhang	1500/2500mm
Number of Leaf Springs	11/11/12,11/11/10,3/3/5,3/3/4,2/2/5,2/2/4,11/11/-,3/3/-,2/2/-,5/5/5,5/5/-
Number of Axles	4
Wheelbase	1950+2900+1350,1950+3050+1350,1950+3250+1350,1950+3450+1350,1800+3050+1350,1800+3000+1400,1800+3225+1350,1800+3425+1350,1950+2850+1400,1800+3150+1350,1800+3100+1400,1800+3250+1350,1800+3225+1400,1800+3450+1350,1800+3425+1400mm
Axle Load	6500/7000/17500(two axles)kg
Front Wheel Track	2015/2015,2035/2035,2061/2061mm
Rear Wheel Track	1850/1850,1870/1870mm
Approaching/Departuring Angle	17/18°
Tire
Number of Tires	12
Tire	315/80R22.5 18PR,295/80R22.5 18PR,12R22.5 18PR,12.00R20 18PR,11.00R20 18PR,11R22.5 18PR
Engine
Model	Brand	Power	Displacement
MT13.44-60	China National Heavy Duty Truck Group Co., Ltd.	327kW	12419ml
MT13.40-60	China National Heavy Duty Truck Group Co., Ltd.	297kW	12419ml
MT13.36-60	China National Heavy Duty Truck Group Co., Ltd.	268kW	12419ml
MT13.40T-60	China National Heavy Duty Truck Group Co., Ltd.	297kW	12419ml
MT11.35-60	China National Heavy Duty Truck Group Co., Ltd.	260kW	10518ml
MT11.38-60	China National Heavy Duty Truck Group Co., Ltd.	282kW	10518ml
MT11.41-60	China National Heavy Duty Truck Group Co., Ltd.	304kW	10518ml
WP10.5HNG390E62	Weichai West Port New Energy Power Co., Ltd.	287kW	10520ml
WP10.5HNG410E62	Weichai West Port New Energy Power Co., Ltd.	301kW	10520ml
