| Basic Information | |||

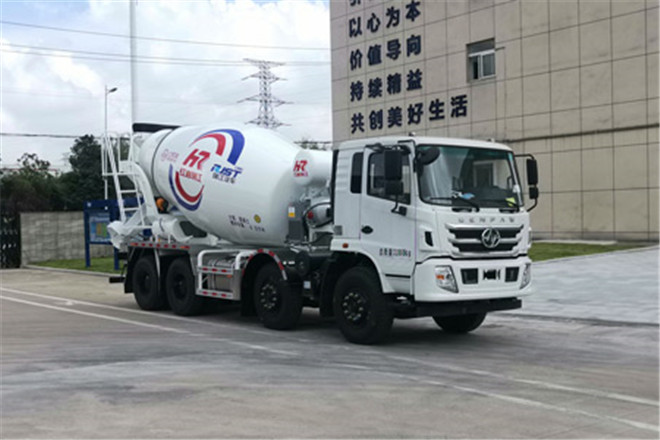

| Usage | Engineering Vehicle | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 9750mm | ||
| Width | 2550mm | ||
| Height | 3850mm | ||
| Curb Weight | 12500kg | ||
| Gross Weight | 31000kg | ||
| Seats | 3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | CQ3316AMVG25-346 | ||
| Front/Rear Overhang | 1480/2060mm | ||
| Number of Leaf Springs | 8/8/6,9/9/6,3/3/4,3/3/6,3/3/12,9/9/12,10/10/12,8/8/12,8/8/4 | ||
| Number of Axles | 4 | ||
| Wheelbase | 2025+2790+1395mm | ||
| Axle Load | 6500/6500/18000(two axles)kg | ||
| Front Wheel Track | 1940/1940,2006/2006,2020/2020mm | ||
| Rear Wheel Track | 1750/1750,1850/1850mm | ||
| Approaching/Departuring Angle | 22/14° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 10.00R20 18PR,11.00R20 18PR,295/80R22.5 18PR,11R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| F2CCE611C*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 235kW | 8709ml |
| F2CCE611D*L | Saic Fiat Powertrain Hongyan Co., Ltd. | 215kW | 8709ml |
