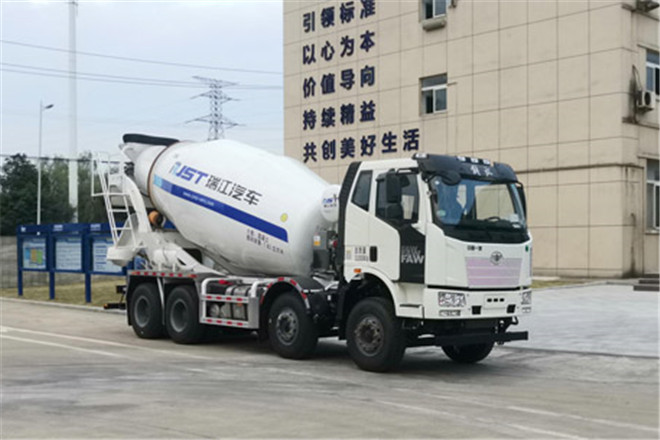

RJST WL5313GJBCAG6B2 Concrete Mixing Transport Vehicle

RJST WL5313GJBCAG6B2 Concrete Mixing Transport Vehicle
RJST WL5313GJBCAG6B2 Concrete Mixing Transport Vehicle
Views:0
Basic Information
Usage Engineering Vehicle
Fuel Type Diesel
Emission Standard GB3847-2005,GB17691-2018 national Ⅵ emission standards
Length 10250,9980mm
Width 2550mm
Height 3990mm
Curb Weight 13780kg
Gross Weight 31000kg
Seats 2
Max Speed 89km/h
Chassis
Chassis Model CA5310GJBP62K1T4E6
Front/Rear Overhang 1400/2650,1400/2380mm
Number of Leaf Springs 10/10/11,8/8/11,3/3/11,9/9/11,11/11/10,8/8/10,9/9/10,12/11/10,4/4/4
Number of Axles 4
Wheelbase 1900+2950+1350mm
Axle Load 6500/6500/18000(two axles)kg
Front Wheel Track 1914/1914,1928/1928,1950/1950,1985/1985mm
Rear Wheel Track 1878/1878,1900/1900mm
Approaching/Departuring Angle 21/18°
Tire
Number of Tires 12
Tire 11.00R20,12R22.5
Engine
Model Brand Power Displacement
CA6DK1-32E6 CHINA FAW GROUP CO., LTD. 239kW 7146ml
