| Basic Information | |||

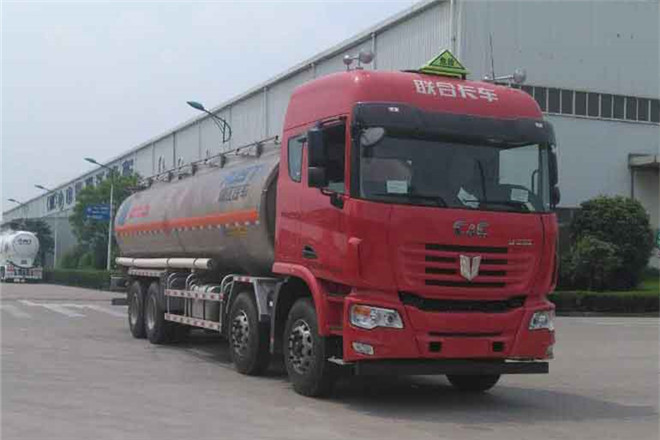

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB17691-2005 national Ⅴ emission standards, GB3847-2005 | ||
| Length | 11990mm | ||
| Width | 2550mm | ||
| Height | 3650mm | ||
| Curb Weight | 11700kg | ||
| Gross Weight | 31000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | QCC1312D656W-E | ||
| Front/Rear Overhang | 1480/2710mm | ||
| Number of Leaf Springs | 3/3/- | ||
| Number of Axles | 4 | ||
| Wheelbase | 1950+4500+1350mm | ||
| Axle Load | 6500/6500/18000(two axles)kg | ||
| Front Wheel Track | 2040/2040mm | ||
| Rear Wheel Track | 1860/1860mm | ||
| Approaching/Departuring Angle | 23/12° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 12R22.5,11.00R20 | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| YC6K1035-50 | Y&C Engine Co., Ltd. | 258kW | 10338ml |
| WP7.300E51 | Weichai Power Co., Ltd. | 220kW | 7470ml |
