| Basic Information | |||

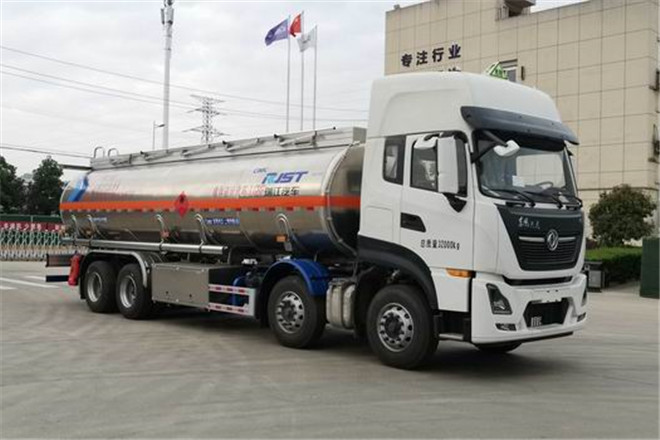

| Usage | Aluminum Alloy Oil Tanker | ||
| Fuel Type | Diesel | ||
| Emission Standard | GB3847-2005,GB17691-2018 national Ⅵ emission standards | ||
| Length | 11820mm | ||
| Width | 2550mm | ||
| Height | 3880,3600mm | ||
| Curb Weight | 11720kg | ||
| Gross Weight | 32000kg | ||
| Seats | 2,3 | ||
| Max Speed | 80km/h | ||
| Chassis | |||
| Chassis Model | DFH1320D2 | ||
| Front/Rear Overhang | 1480/2495mm | ||
| Number of Leaf Springs | 3/3/-/- | ||
| Number of Axles | 4 | ||
| Wheelbase | 1995+4500+1350,1995+3800+1350mm | ||
| Axle Load | 6500/6500/19000(two axles)kg | ||
| Front Wheel Track | 2030/2030mm | ||
| Rear Wheel Track | 1860/1860,1880/1880mm | ||
| Approaching/Departuring Angle | 22/12° | ||
| Tire | |||
| Number of Tires | 12 | ||
| Tire | 295/80R22.5 18PR | ||
| Engine | |||
| Model | Brand | Power | Displacement |
| DDi75E350-60 | Dongfeng Trucks Co., Ltd. | 257kW | 7500ml |
| L9NS6B400 | Dongfeng Cummins Engine Co., Ltd. | 294kW | 8900ml |
