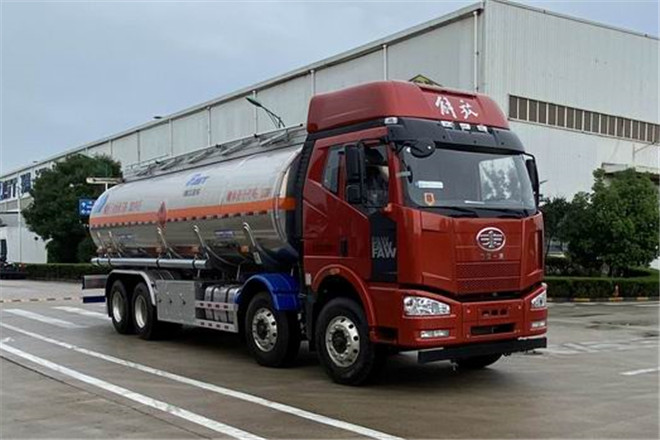

RJST WL5320GYYBJ45 Aluminum Alloy Oil Tanker

Basic Information
Usage	Aluminum Alloy Oil Tanker
Fuel Type	Diesel
Emission Standard	GB17691-2005 national Ⅴ emission standards, GB3847-2005
Length	11900mm
Width	2550mm
Height	3550mm
Curb Weight	11500kg
Gross Weight	32000kg
Seats	2,3
Max Speed	80km/h
Chassis
Chassis Model	BJ1329VPPKF-AA
Front/Rear Overhang	1450/2600mm
Number of Leaf Springs	3/3/-/-,2/2/-/-
Number of Axles	4
Wheelbase	2000+4500+1350,2090+4410+1350mm
Axle Load	6500/6500/19000(two axles)kg
Front Wheel Track	1960/1960,2005/2005,2021/2021,2039/2039mm
Rear Wheel Track	1830/1830,1860/1860,1890/1890mm
Approaching/Departuring Angle	17/10°
Tire
Number of Tires	12
Tire	10.00-20 18PR,10.00R20 18PR,11.00-20 18PR,11.00-20 16PR,11.00R20 18PR,11.00R20 16PR,12R22.5 18PR,12R22.5 16PR,295/80R22.5 18PR,295/80R22.5 16PR,315/80R22.5 18PR,315/80R22.5 16PR
Engine
Model	Brand	Power	Displacement
ISGe5-430	Beijing Foton Cummins Engine Co., Ltd.	316kW	11800ml
ISGe5-400	Beijing Foton Cummins Engine Co., Ltd.	294kW	11800ml
ISGe5-380	Beijing Foton Cummins Engine Co., Ltd.	279kW	11800ml
ISGe5-360	Beijing Foton Cummins Engine Co., Ltd.	265kW	11800ml
ISGe5-340	Beijing Foton Cummins Engine Co., Ltd.	250kW	10500ml
ISGe5-320	Beijing Foton Cummins Engine Co., Ltd.	235kW	10500ml
ISGe5-300	Beijing Foton Cummins Engine Co., Ltd.	220kW	10500ml
