| Basic Information |
| Usage |

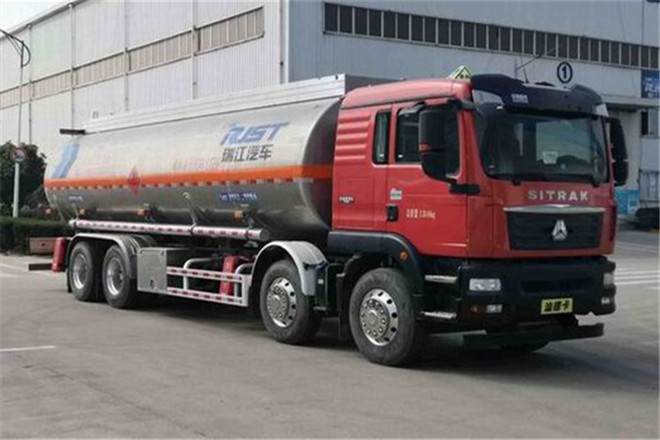

Aluminum Alloy Oil Tanker |
| Fuel Type |
Diesel |
| Emission Standard |
GB17691-2018 national Ⅵ emission standards |
| Length |
11920mm |
| Width |
2550mm |
| Height |
3600mm |
| Curb Weight |
11300kg |
| Gross Weight |
32000kg |
| Seats |
2,3 |
| Max Speed |
80km/h |
| Chassis |
| Chassis Model |
ZZ1326N466GF1K |
| Front/Rear Overhang |
1450/2695mm |
| Number of Leaf Springs |
2/2/-/-,3/3/-/-,11/11/-/- |
| Number of Axles |
4 |
| Wheelbase |
1800+3775+1400,1800+3975+1400,1800+4175+1400,1800+4375+1400,1800+4575+1400mm |
| Axle Load |
6500/7000/18500(two axles)kg |
| Front Wheel Track |
1998/1998,2035/2035,2065/2065mm |
| Rear Wheel Track |
1850/1850mm |
| Approaching/Departuring Angle |
16/10° |
| Tire |
| Number of Tires |
12 |
| Tire |
295/80R22.5 18PR,12R22.5 18PR,11.00R20 18PR |
| Engine |
| Model |
MC07.31-60,MC07.33-60,MC07.34-60,WP8.350E61,MC07H.29-60,MC07H.33-60,MC07H.35-60,WP7.300E61 |
| Power |
228,240,251,257,213,240,257,220kW |
| Brand |
China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;Weichai Power Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;China National Heavy Duty Truck Group Co., Ltd.;Weichai Power Co., Ltd. |
| Displacement |
6870,6870,6870,7800,7360,7360,7360,7470ml |
